Overview

The Miscellaneous Equipment is an equipment that can help the pilot or the copilot to store different items. The miscellaneous equipment is found in the flight compartment.

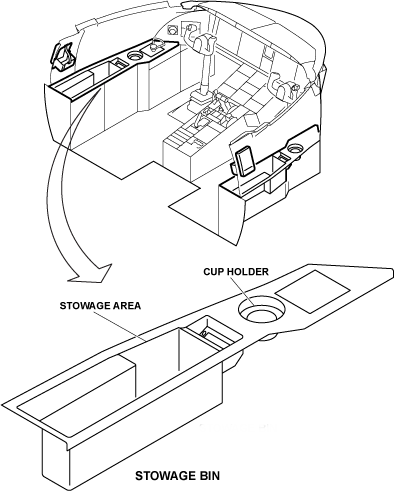

Stowage Bin

The stowage bins are assemblies found outboard on the left and right side of the flight compartment. They are made from fiber composite material and are attached to the structure with screws. The stowage bins supply stowage for different objects to help the flight crew. The left and right stowage bin has a stowage area, a cup holder and a cutout for a COCKPIT LIGHTS panel. Also, on the left side, there is a cutout for the handwheel.

300_2514_001

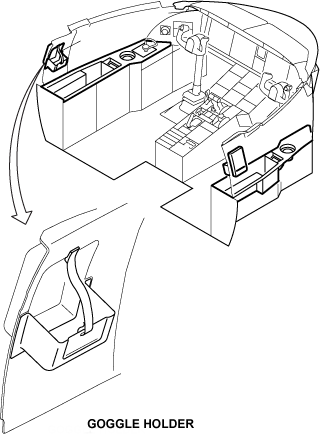

Goggle Holders

The goggle holders are found above the stowage bins on the side trim panels and supply stowage for the pilot's and the copilot's goggles. The goggle holders are made from polycarbonate material and are bonded to the side trim panel. The goggles are put in a bag to prevent them from damage. The goggles and bag are held in the holder with a strap.

300_2514_002
