Overview

The emergency equipment has different functions to help the crew/passengers in emergency conditions. This equipment is installed at different locations in the flight compartment.

The emergency equipment is portable and is for crew/passengers in emergency conditions.

Axe

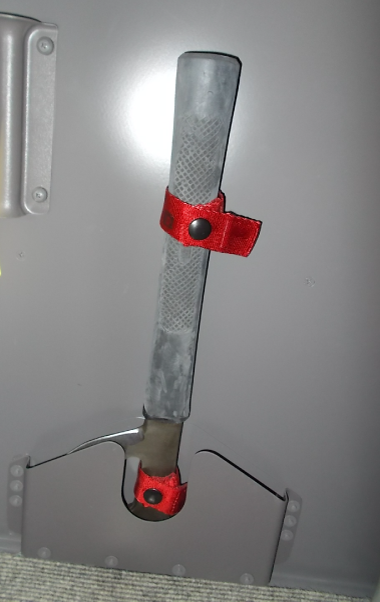

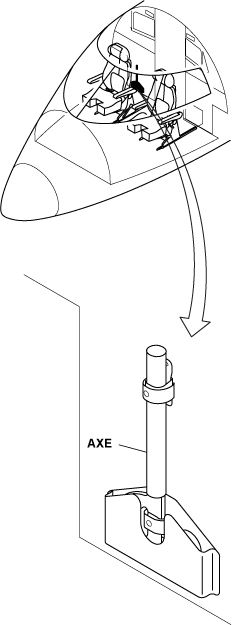

The axe is a tool that can cut through different aircraft material. The crew/passengers can use it as a hammer or a lever in emergency conditions. The axe is installed behind the copilot's seat on the flight compartment bulkhead at FS326.00.

300_2562_001

axe

Life Vest

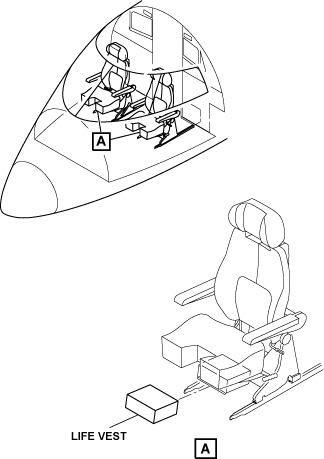

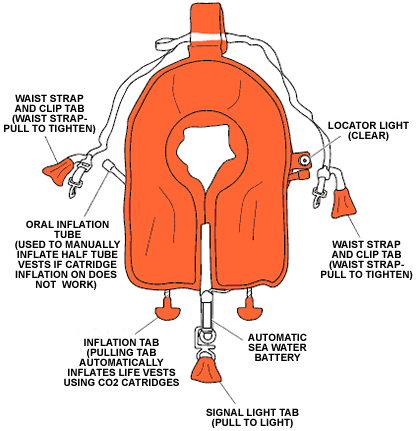

The life vest is an equipment that helps the crew keep their head above the water in emergency conditions. The life vests are below the pilot's and the copilot's seats.

300_2562_002

300_2562_004

Personal Breathing Equipment

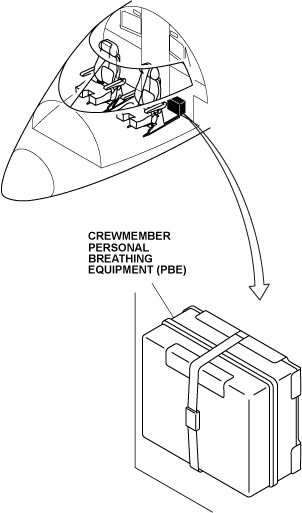

The personal breathing equipment (PBE) is a portable system that the crew/passenger can use in emergency conditions. The PBE is behind the pilot's seat on the flight compartment bulkhead at FS326.00.

300_2562_003
