Overview

The fuel storage system provides storage for the fuel supply. The fuel storage system maintains acceptable pressure differential between the interior and exterior of the fuel tanks.

The fuel system storage has two integral tanks located in the wings. Open vent lines in each tank supply maximum air flow in flight or during refuel/defuel of the aircraft.

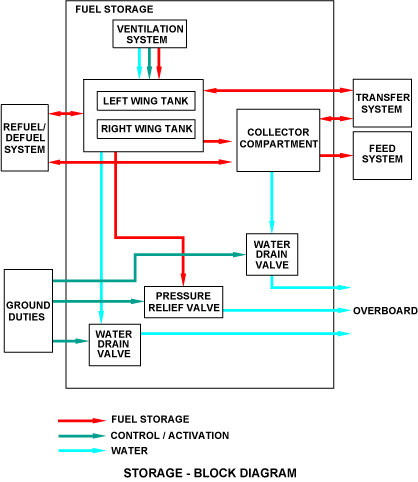

300_2810_001

11/19/15

System Interface

The storage system has interfaces with the systems that follow:

  • Fuel Feed System
  • Fuel Transfer System
  • Refuel/Defuel System
  • Indicating
