System Description
arrow By ATA By Message Color By Observed Faults by MDCBy Tips

Select color for CAS message that you wish to troubleshoot

(WARNING)
RED MESSAGE (CAUTION)
AMBER MESSAGE (ADVISORY)
CYAN MESSAGE (STATUS)
WHITE MESSAGE Require immediate crew attention. These messages are accompanied by flashing master warning, triple chime attenson with or without voice message or dedicated tone. Require immediate crew awareness and future crew action may be required in the form of alternate system selection or performance limitation. These message are accompanied by flashing master caution and a single chime. Indicate safe or normal system operation which require crew awareness, over and above the dark cockpit philosophy. Indicate minor failures or reduction in systems capability, which require no crew action.

This page includes :



For AOG assistance contact:

CRC Montreal (YUL)
Quick Links

11/25/15

Overview

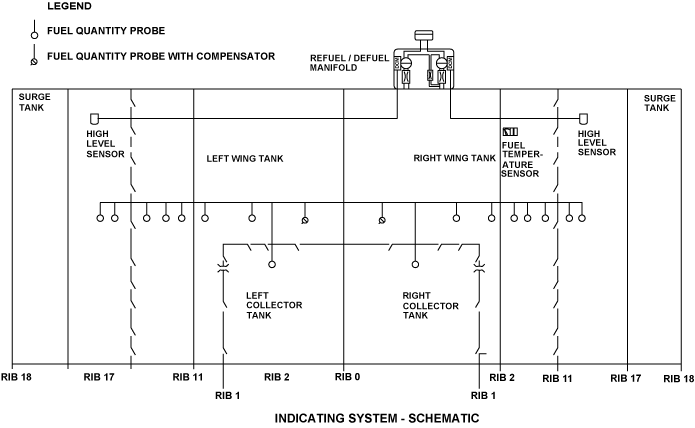

The indicating system provides fuel quantity and temperature information to the flight and ground crew. Its also monitors and controls the refuel/defuel functions.

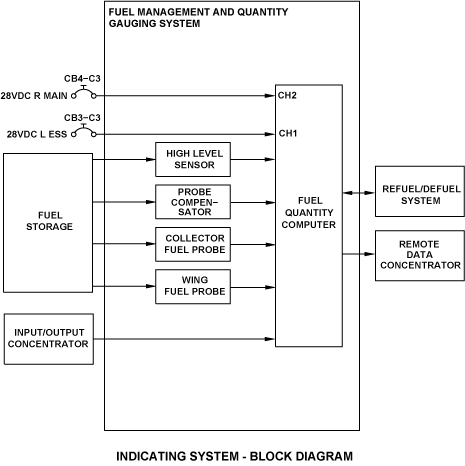

Indication of the refuel/defuel sytem is supplied to the EICAS through the fuel management and quantity gauging system (FMQGS).

The FMQGS supplies fuel quantity information, monitors refuel/defuel operation and gives indication to the refuel/defuel control panel during refuel/defuel. It is designed to prevent fuel overfill in the event that a fault occurs in the system during the refuel operation.
