System Description
arrow By ATA By Message Color By Observed Faults by MDCBy Tips

Select color for CAS message that you wish to troubleshoot

(WARNING)
RED MESSAGE (CAUTION)
AMBER MESSAGE (ADVISORY)
CYAN MESSAGE (STATUS)
WHITE MESSAGE Require immediate crew attention. These messages are accompanied by flashing master warning, triple chime attenson with or without voice message or dedicated tone. Require immediate crew awareness and future crew action may be required in the form of alternate system selection or performance limitation. These message are accompanied by flashing master caution and a single chime. Indicate safe or normal system operation which require crew awareness, over and above the dark cockpit philosophy. Indicate minor failures or reduction in systems capability, which require no crew action.

This page includes :



For AOG assistance contact:

CRC Montreal (YUL)
Quick Links

11/30/15

Overview

The aircraft has two main wheels and tires on each main landing gear. Also, it has two wheels and tires on the nose landing gear that lets the aircraft turn when on the ground. It has a brake control system which gives the pilot control of the main wheel brakes. Also, there is a parking brake system which keeps the aircraft in a set location when on the ground.

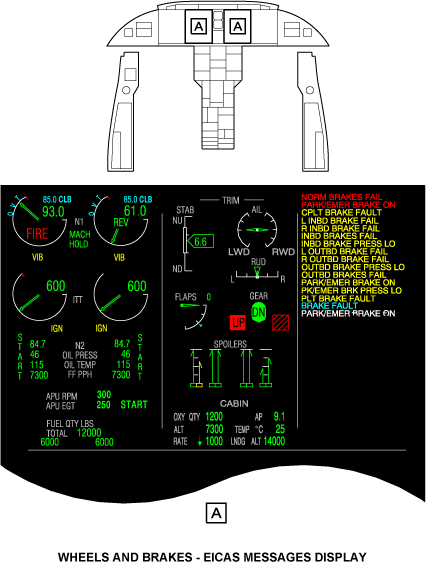

The function of the wheels and brakes is to decrease the aircraft speed after the landing and during the taxi procedures. The wheels and brakes also let the aircraft move and stop when on the ground. The EICAS messages display shown gives the related messages for the wheels and brakes system.
