Overview

Note:
This section is applicable to A/C Post SB 350-33-002.

The logo lighting system is to illuminate the left and the right logo on the vertical stabilizer. The logo lighting system has an interface with the LIGHTING Control Panel.

300_3346_001

LH Logo Light

The LH logo light is a low sealed beam unit. The LH logo light is installed to flush with the LH engine pylon surface to minimize the impact of aerodynamic drag. The LH logo light will illuminate the left logo on the vertical stabilizer. The LH logo light receives 24 VDC electrical power from R AUX BUS.

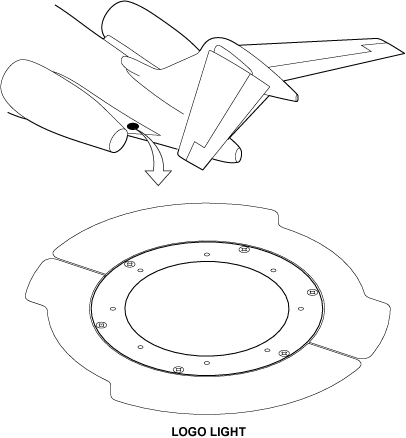

300_3346_002

RH Logo Light

The RH logo light is a low sealed beam unit. The RH logo light is installed to flush with the RH engine pylon surface to minimize the impact of aerodynamic drag. The RH logo light will illuminate the left logo on the vertical stabilizer. The RH logo light receives 24 VDC electrical power from R AUX BUS.

System Operation

The logo lights are controlled by the NAV/LOGO switch on the LIGHTING control panel. The switch has three positions NAV, NAV/LOGO, OFF. When the switch is set to the NAV/LOGO position, the logo lights, and the navigation lights will come on. When the switch is set to the OFF position, the logo lights, and the navigation lights will go off.

300_3346_003

10/28/20

Component Location Index

Component Location Index
IDENT DESCRIPTION LOCATION IPC REF
DS45 LOGO LIGHT LH ZONE(S) 413 33-46-01
DS44 LOGO LIGHT RH ZONE(S) 423 33-46-01
