Troubleshooting
arrow By ATA By Message Color By Observed Faults by MDCBy Tips

Select color for CAS message that you wish to troubleshoot

(WARNING)
RED MESSAGE
(CAUTION)
AMBER MESSAGE
(ADVISORY)
CYAN MESSAGE
(STATUS)
WHITE MESSAGE
Require immediate crew attention. These messages are accompanied by flashing master warning, triple chime attenson with or without voice message or dedicated tone. Require immediate crew awareness and future crew action may be required in the form of alternate system selection or performance limitation. These message are accompanied by flashing master caution and a single chime. Indicate safe or normal system operation which require crew awareness, over and above the dark cockpit philosophy. Indicate minor failures or reduction in systems capability, which require no crew action.

This page includes :

For AOG assistance contact:

CRC Montreal (YUL)
Quick Links

10/04/21

Message Overview:

AIR COND FAULT
(Advisory)

DDG Reference: 21-50
21-52
21-61
Pilot Action (QRH): ENVR 06-15
System Description: 21-51-00
Schematic Diagram: 21-52-00
Wiring Diagram: 21-52-17
21-61-29
21-61-07

Message Description:

The cyan 'AIR COND FAULT' advisory CAS message indicates a fault has been detected in the air conditioning system or there has been a loss of temperature sensing.

Possible Causes:

  • Cockpit Temperature Selector (CKSEL) (R02)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Operational Test of the Temperature Control and Indication System AMM 21-61-00-710-801
Cleaning of the Ventilated Temperature Sensor AMM 21-61-00-110-801
Removal of the Flight-Compartment Duct Temperature-Sensor AMM 21-61-09-000-801
Installation of the Flight-Compartment Duct Temperature-Sensor AMM 21-61-09-400-801
Removal of the Cabin Duct Temperature-Sensor AMM 21-61-13-000-801
Installation of the Cabin Duct Temperature-Sensor AMM 21-61-13-400-801
Removal of the Cabin Ventilated Temperature-Sensor AMM 21-61-21-000-801
Installation of the Cabin Ventilated Temperature-Sensor AMM 21-61-21-400-801
Removal of the Flight-Compartment Ventilated Temperature-Sensor AMM 21-61-25-000-801
Installation of the Flight-Compartment Ventilated Temperature-Sensor AMM 21-61-25-400-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Interrogate the MDC as follows:

    1. On the cursor control panel, ensure the toggle switch is to the right and select Anti-Ice, ECS and Fuel buttons simultaneously. The MDC main menu should now be displayed on Display Unit #3.

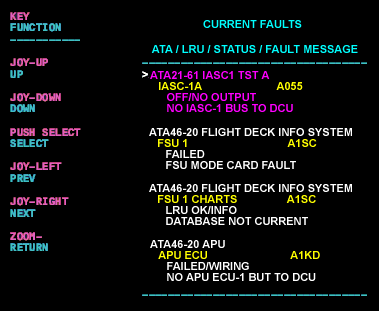

    2. Using the joystick, select Current Faults (if the fault is active) or Aircraft History to research stored faults. From Aircraft History you can then select Fault Message History and locate the air condition fault logged.

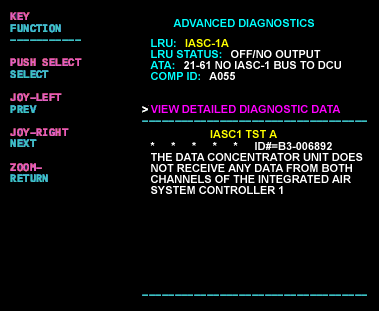

    3. Select the MDC fault from the drop down below to provide additional information to assist in troubleshooting.

61_aircond_temp_fail_cf61_aircond_temp_fail_ad
