Message Overview:
Message Description:
The amber 'L MAIN BUS FAIL' caution CAS message indicates the Left main power bus has no power, though it is available.
- This could be indication of faulty Fuse(s), Generator(s) or Contactor(s).
Possible Causes:
- Left Essential Contactor (LESSC) K77
- Left Bus Tie Contactor (LBTC) K79
- Right Bus Tie Contactor (RBTC) K80
- External DC Contactor (EDCC) K81
- Left Aux Contactor (LAUXC) K75
- F1 Main Fuse (LDCPC)
- PCB3 Logic Card (LDCPC)
- Left Direct Current Power Center (LDCPC) A35
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin:
- AW300-24-0162 - Service Bulletin 100-24-20 - DC Power Center (DCPC) System - Inspection and Replacement of Internal Fuses in the L/H and R/H DC Power Center (DCPC)
Forum Articles/Infoservice/Newsletter: None
Quick Links:
| Removal of the Main Generator | AMM 24-31-05-000-801 |
| Installation of the Main Generator | AMM 24-31-05-400-801 |
| Operational Test of the Main Generator | AMM 24-31-05-710-801 |
| Removal of the APU Generator | AMM 24-31-09-000-801 |
| Installation of the APU Generator | AMM 24-31-09-400-801 |
| Operational Test of the APU Generator | AMM 24-31-09-710-801 |
| Removal of the Generator Control Unit (GCU) - Primary | AMM 24-31-13-000-801 |
| Installation of the Generator Control Unit (GCU) - primary | AMM 24-31-13-400-801 |
| Removal of the Auxiliary Generator Control-Unit | AMM 24-31-17-000-801 |
| Installation of the Auxiliary Generator Control-Unit | AMM 24-31-17-400-801 |
| Removal of the Generator Power Module | AMM 24-31-21-000-801 |
| Installation of the Generator Power Module | AMM 24-31-21-400-801 |
| Installation of the Auxiliary Generator Power-Module | AMM 24-31-25-400-801 |
| Removal of the Auxiliary Power Contactor | AMM 24-61-13-000-801 |
| Installation of the Auxiliary Power Contactor | AMM 24-61-13-400-801 |
| Operational Test of the Auxiliary Power Contactor | AMM 24-61-13-710-801 |
| Removal of the Auxiliary Contactor | AMM 24-61-21-000-801 |
| Installation of the Auxiliary Contactor | AMM 24-61-21-400-801 |
| Operational Test of the Auxiliary Contactor | AMM 24-61-21-710-801 |
| Removal of the DC Power-Center Fuses | AMM 24-61-79-000-801 |
| Installation of the DC Power-Center Fuses | AMM 24-61-79-400-801 |
| Removal of the DC Power-Center Relays | AMM 24-61-81-000-801 |
| Installation of the DC Power-Center Relays | AMM 24-61-81-400-801 |
| Wiring - Maintenance Practices - ALL | SPM 20-12-00-02 |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 |
Troubleshooting Recommendations:
- Check for other ATA 24 CAS Messages on EICAS and proceed with respective troubleshooting prior to continue with next step.
- Interrogate the MDC as follows:
- On the cursor control panel, ensure the toggle switch is to the right and select Anti-Ice, ECS and Fuel buttons simultaneously. The MDC main menu should now be displayed on Display Unit #3.

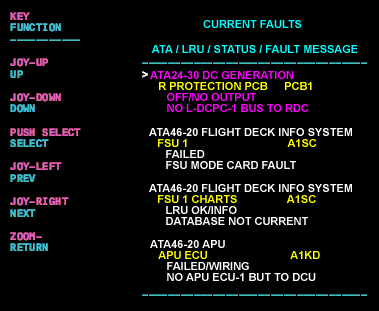

- Using the joystick, select Current Faults (if the fault is active) or Aircraft History to research stored faults. From Aircraft History you can then select Fault Message History and locate the fault. Going into advanced diagnostics will provide an equation id for the fault identified.
- Select the MDC fault or equation from the drop down below to provide additional information to assist in troubleshooting.
