01/28/21

Message Overview:

XBLEED FAIL
(Caution)

DDG Reference: None
Pilot Action (QRH): ENVR 06-12
System Description: 30-11-00
Schematic Diagram: 36-11-00
Wiring Diagram: 21-61-01

Message Description:

The amber 'XBLEED FAIL' caution CAS message indicates a failure is detected is indicated by comparing the IASC2 command signal with the position signal of the cross bleed valve (MPE10) received by both IASCs.

  • The cross-flow valve has failed in the full closed position, full open position when commanded to another position.

10_anti_ice_crossflow_valve

Possible Causes:

  • Isolation Valve (Cross Bleed Valve) (MPE2)
  • Junction Box 2 (JB2) DB1
  • Air Conditioning/Bleed Control Panel (PL17)
  • Integrated Air System Controller (IASC) 1 (A55)
  • IASC 2 (A56)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW300-30-0354 - Potential Piccolo Tube Damage When Replacing a Bleed Loop Element

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Integrated Air System (IAS) Controller AMM 21-31-01-000-801
Installation of the Integrated Air System (IAS) Controller AMM 21-31-01-400-801
Removal of the Junction Box JB2 Circuit-Cards AMM 24-63-05-000-802
Installation of the Junction Box JB2 Circuit-Cards AMM 24-63-05-400-802
Removal of the Junction Box JB2 AMM 24-63-05-000-803
Installation of the Junction Box JB2 AMM 24-63-05-400-803
Removal of the Cross-Bleed Valve AMM 36-11-15-000-801
Installation of the Cross-Bleed Valve AMM 36-11-15-400-801
Removal of the Bleed-Air Control Panel AMM 36-11-57-000-801
Installation of the Bleed-Air Control Panel AMM 36-11-57-400-801
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Determine the commanded position of the valve and cross check this position either visually or through the IASC LRU Test page, discrete data section.

    1. If the valve is failing when commanded to the closed position, a ground should be on IASC #1 A56P4 pin 35, or IASC #2 A55P4 pin 35. Or the valve should have continuity between pins 4 & 5.
    2. If the valve is failing when commanded to the open position, a ground is sent to the DCU A14BP1 pin 6H where the signal is compared to the XBleed rotary switch. Or the valve should have continuity between pins 3 & 4.

  2. Perform wiring checks between the X BLEED switch on the Bleed air control panel and IASC 2.

    1. If defects are found, repair defective wiring as required.
    2. If no defects are found, continue with next step.

  3. Perform a continuity check on the Bleed air control panel while activating the XBLEED switch.

    1. If switch is faulty, replace the switch.
    2. If no defects are found, continue with next step.

  4. Access the MDC and view fault messages. Select displayed message from menu below:

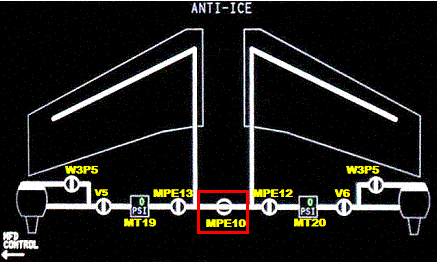

21_wai_crossflow_indication
