Message Overview:

R STARTER FAIL
(Caution)

DDG Reference: 80-11-00
Pilot Action (QRH): NNC-15-5
System Description: 80-10-00
Schematic Diagram: 80-11-00
Wiring Diagram: 80-11-01
80-11-03

Message Description:

The amber 'R STARTER FAIL' caution CAS message indicates the respective engine starter control valve has failed.

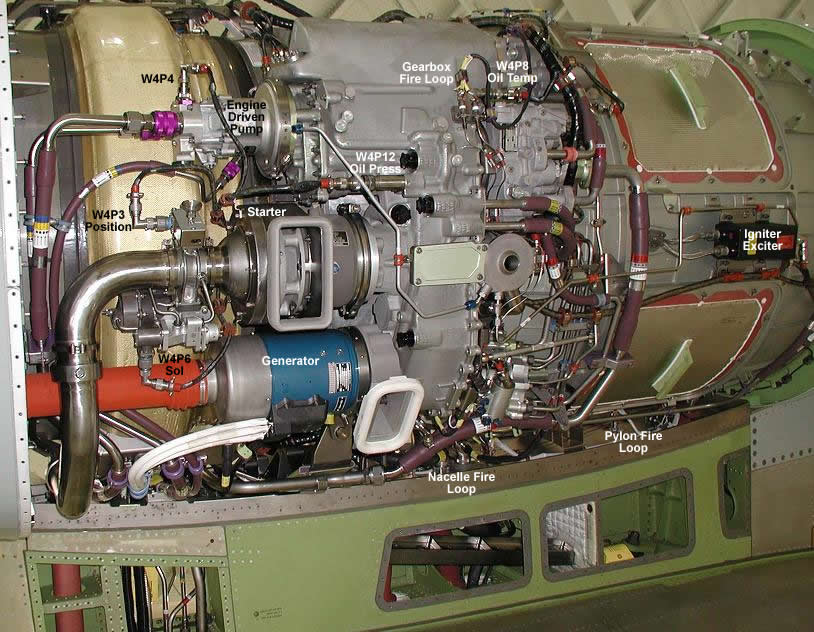

eng_7

  • The ECU has commanded the starter control valve solenoid to open and has not received open logic from the starter control valve position switch.

25_thrust_reverser_block_wd

Possible Causes:

  • None

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Engine Starting System - Component Location AMM 80-11-00-992-801
Removal of the Air Turbine Starter AMM 80-11-01-000-801
Installation of the Air Turbine Starter AMM 80-11-01-400-801
Starter-Control-Valve Manual-Override Procedure AMM 80-11-05-860-801
Removal of the Starter Control Valve AMM 80-11-05-000-801
Installation of the Starter Control Valve AMM 80-11-05-400-801
Standard Practices - Wire Repair SPM 20-12-10-02

Troubleshooting Recommendations:

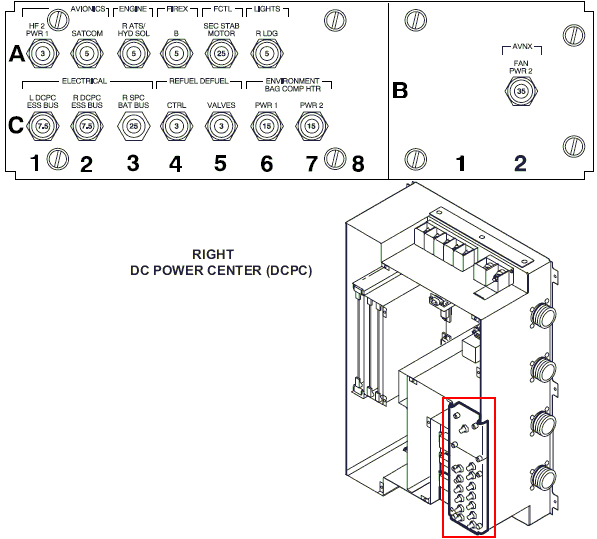

  1. If the starter does not engage at all and the 'R STARTER FAIL' CAS message is illuminated, assure that the 28 VDC Right Essential Bus 5 amp CB CB6-A3 (R ATS/HYD SOL) is set on the A36 Right-hand DC Power Center.
  2. Verify the 28 VDC voltage is at the W4P6 pin A at the starter, (if not troubleshoot the power wire from the RH DCPC to the starter).
  3. Ring through the starter solenoid, pins A to B, there should be continuity. If not replace the starter.
  4. With W4P6 starter solenoid removed, check for a ground on pin B, should be open. Momentarily place the right-hand starter in start, a ground should be supplied to pin B of W4P6, (if not, check the wiring to the FADEC. (Channel A pin 96 connector W6P2/A40J2) (Channel B pin 96 W6P3/A42J2).

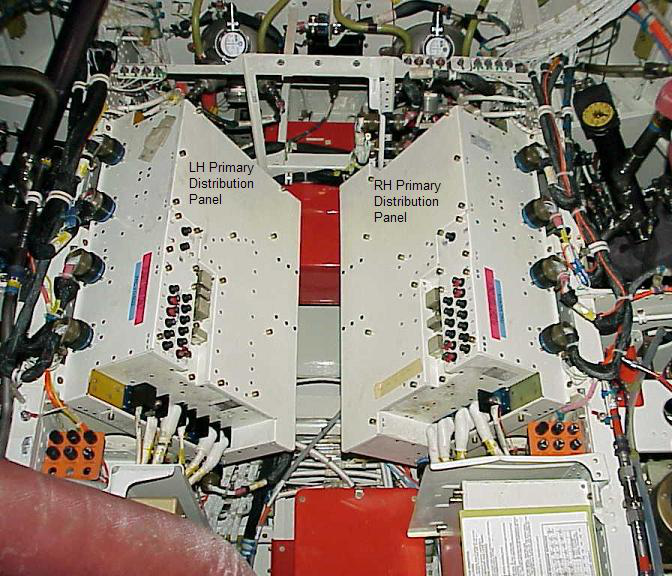

60_rh_dcpc_cb_panel60_primary_distribution_panels

Troubleshooting Continuation Both Sides:

  1. Interrogate the MDC, look for and troubleshoot the following equations or MCID Codes related to the starter:
