Message Overview:

Message Name:

HMU SUSPECT

Message Code:

B3-303021

Associated CAS Message:

None

Reporting LRU: R ENG HMU
System Description: 73-30-00
Schematic Diagram: 73-21-00 Sh. 3
Wiring Diagram: None

Message Description:

Right engine fuel system HMU suspect.

[MCID 0133]
Fuel system HMU suspect.
Suspect operation within the HMU was sensed.

Possible Causes:

  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

General Visual Inspection of the Engine Wiring Harness AMM 71-50-00-210-802
Removal of the FADEC Electrical Harness from the Right Engine AMM 71-50-05-000-803
Installation of the FADEC Electrical Harness on the Right Engine AMM 71-50-05-400-803
Component Location AMM 73-20-00-992-801

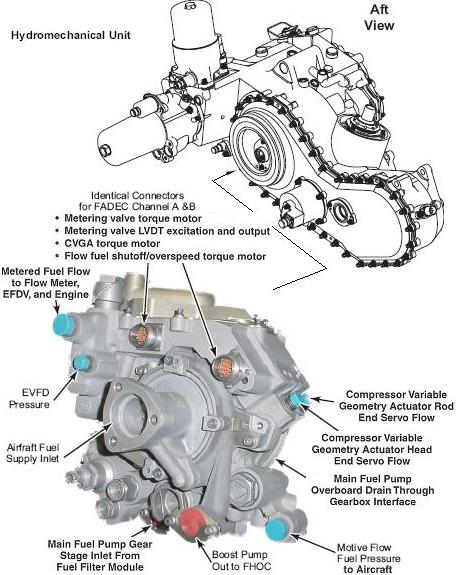

Removal of the Hydromechanical Unit (HMU) AMM 73-20-01-000-801
Installation of the Hydromechanical Unit (HMU) AMM 73-20-01-400-801
Functional Test of the Hydromechanical Unit (HMU) Motive Flow Pressure AMM 73-20-01-720-801
Component Location AMM 76-10-00-992-801
Removal of the Engine Electronic Control Unit (ECU) AMM 76-10-05-000-801
Installation of the Engine Electronic Control Unit (ECU) AMM 76-10-05-400-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. MCID 0133 fault present, troubleshoot using the following steps for aircraft and engine fault isolation with reference to the Light Engine Maintenance Manual TASK 72-00-00-810-032.

CB3-C3
