Message Overview:

Message Name:

SHORT CIRCUIT

Message Code:

B3-008131

Associated CAS:

FIRE SYS FAULT
(Advisory)

Reporting LRU: APU FIRE LOOP A
System Description: 26-13-00
Schematic Diagram: 26-13-00
Wiring Diagram: 26-13-01

Message Description:

Short circuit on APU element A103 or A104, wire short, or FIREX Control Unit internal failure.

Possible Causes:

  • APU Fire Detection Loop
  • FIREX Control Unit (A91)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Fire-Detection-and-Extinguishing (FIREX) Control-Unit AMM 26-11-01-000-801
Installation of the Fire-Detection-and-Extinguishing (FIREX) Control-Unit AMM 26-11-01-400-801
Removal of the Eductor Sensing Element AMM 26-13-01-000-801
Installation of the Eductor Sensing Element AMM 26-13-01-400-801
Removal of the Firewall Sensing Element AMM 26-13-05-000-801
Installation of the Firewall Sensing Element AMM 26-13-05-400-801
Kiddie Aerospace CMM 26-11-88
Electrical Bonding - Adjustment/Test SPM 51-80-00-05
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Reset FIREX Control Unit (A91) circuit breakers CB1-A11 and CB5-A3. Check MDC for fault.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  2. Do LDE Checks of the APU Fire Loop A. Repair/replace as required.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  3. Inspect the suspected fire loops for proper installation and adjust as required.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  4. Perform the electrical bonding test.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  5. Replace FIREX control unit.
  6. Do close out.

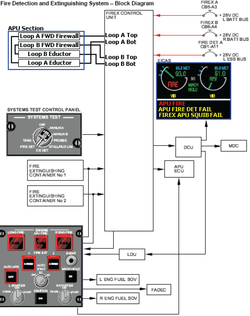

    apu_fire_loopfirex_block
