04/13/21

Message Overview:

Message Name:

FUEL SYSTEM HMU 1B

Message Code:

B3-303012

Associated CAS:

L ENGINE MINOR FAULT
(Advisory)

Reporting LRU: L ENG HMU
System Description: 73-10-00
Schematic Diagram: 73-21-00
Wiring Diagram: None

Message Description:

Left engine fuel system HMU fault 1B.

[MCID 0111]
Fuel system HMU 1B.

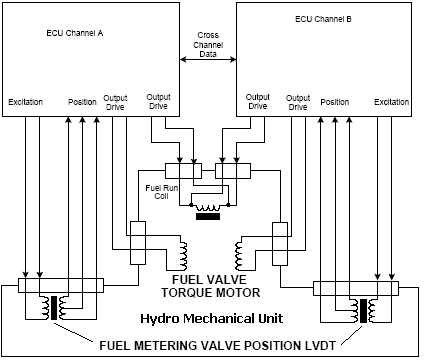

An open-type fault in the HMU sensors/effectors circuit was sensed. This circuit includes the HMU sensors/effectors, the electronic control unit (ECU) B and the wires between them. The ECU B cannot support full-system operation.

Possible Causes:

  • Hydromechanical Unit (HMU) (Channel B connection)
  • Wiring Harness (W3)
  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit B (ECU) (A43)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

  • If the L or R ENG MINOR FAULT CAS message is shown with this fault, this is a Short Term dispatch (STD) fault and is subject to correction outlined in the Honeywell LEMM SUB TASK 5-10-00-200-003.
  • If a L or R FADEC FAIL CAS message is shown, this is a No Dispatch (ND) fault and is subject to correction outlined in the Honeywell LEMM SUB TASK 5-10-00-200-003.
  • Check for the following MDC messages displayed with the fault: X-channel bus 1A (MCID 0905), X-channel bus 1B (MCID 0906), X-channel discrete 1A (MCID 0933), X-channel discrete 1B (MCID 0934). If any of the above MCID codes are posted, correct the cross channel faults first.

Issues with the N1 shut-off (Broken Shaft Connector), or bleed surge valves, contact Honeywell FSR and find out about status of Dash 12 W5 harness. Ref Honeywell S/B AS907-76-9011. Most likely tied to connector pin friction or loose connector.

Quick Links:

General Visual Inspection of the Engine Wiring Harness AMM 71-50-00-210-802
Removal of the FADEC Electrical Harness from the Left Engine AMM 71-50-05-000-802
Installation of the FADEC Electrical Harness on the Left Engine AMM 71-50-05-400-802
Component Location AMM 73-20-00-992-801
Removal of the Hydromechanical Unit (HMU) AMM 73-20-01-000-801
Installation of the Hydromechanical Unit (HMU) AMM 73-20-01-400-801
Functional Test of the Hydromechanical Unit (HMU) Motive Flow Pressure AMM 73-20-01-720-801
Component Location AMM 76-10-00-992-801
Removal of the Engine Electronic Control Unit (ECU) AMM 76-10-05-000-801
Installation of the Engine Electronic Control Unit (ECU) AMM 76-10-05-400-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. MCID 0111 fault only is present, troubleshoot using the following steps for aircraft and engine fault isolation with reference to the Light Engine Maintenance Manual TASK 72-00-00-810-010.
  2. Reset and reboot the ECU to recheck the MDC MCID for the posted fault.
  3. Remove the connector on the ECU 1B W3P9, inspect for burned or pushed back pins/sockets, then check the following segments per the table, repair wiring if required per the wiring manual standard practices.

    From To Value
    W3P9 Pin 43 W3P9 Pin 44 9 to 50 Ω
    W3P9 Pin 51 W3P9 Pin 52 18 to 100 Ω
    W3P9 Pin 36 W3P9 Pin 37 200 to 900 Ω
    W3P9 Pin 23 W3P9 Pin 30 50 to 250 Ω
    W3P9 Pin 24 W3P9 Pin 30 50 to 250 Ω
    W3P9 Pin 42 W3P9 Pin 34 4 to 30 Ω
    W3P9 Pin 21 W3P9 Pin 35 120 to 500 Ω

  4. If the resistance values check good, proceed to step 7, if the resistance values were bad at the ECU, perform a resistance check on the HMU as shown in the table below:

    From To Value
    W3J10 Pin 12 W3J10 Pin 11 9 to 50 Ω
    W3J10 Pin 6 W3J10 Pin 7 18 to 100 Ω
    W3J10 Pin 2 W3J10 Pin 1 200 to 900 Ω
    W3J10 Pin 8 W3J10 Pin 9 50 to 250 Ω
    W3J10 Pin 10 W3J10 Pin 9 50 to 250 Ω
    W3J10 Pin 4 W3J10 Pin 5 4 to 30 Ω
    W3J10 Pin 21 W3J10 Pin 35 120 to 500 Ω

  5. If the resistance values fail, replace the HMU, if the resistance values check good, suspect the W4 wiring harness and replace per the Honeywell LEMM TASK 76-10-01-050-801.
  6. Do a short to ground check as shown in the table below:

    From To Value
    W3P9 Pin 43 Ground > 5,000 Ω
    W3P9 Pin 37 Ground > 5,000 Ω
    W3P9 Pin 51 Ground > 5,000 Ω

  7. If the resistance values check good, proceed to step 10, if the resistance values were bad at the ECU, perform a resistance check on the HMU as shown in the table below:

    From To Value
    W3J10 Pin 12 Ground > 5,000 Ω
    W3J10 Pin 2 Ground > 5,000 Ω
    W3J10 Pin 6 Ground > 5,000 Ω

  8. If the resistance values check good, proceed to step 10, if the resistance values are bad, replace the HMU IAW AMM TASK 73-20-01-000-801, TASK 73-20-01-400-801.
  9. Consider swapping or replacing the A channel ECUs for the left engine, remove and replace IAW AMM TASK 76-10-05-000-801, TASK 76-10-05-400-801 then recheck the system for the fault.
