Troubleshooting
arrow By ATA By Message Color By Observed Faults by MDCBy Tips

Select color for CAS message that you wish to troubleshoot

(WARNING)
RED MESSAGE (CAUTION)
AMBER MESSAGE (ADVISORY)
CYAN MESSAGE (STATUS)
WHITE MESSAGE Require immediate crew attention. These messages are accompanied by flashing master warning, triple chime attenson with or without voice message or dedicated tone. Require immediate crew awareness and future crew action may be required in the form of alternate system selection or performance limitation. These message are accompanied by flashing master caution and a single chime. Indicate safe or normal system operation which require crew awareness, over and above the dark cockpit philosophy. Indicate minor failures or reduction in systems capability, which require no crew action.

This page includes :

For AOG assistance contact:

CRC Montreal (YUL)
Quick Links

04/14/21

Message Overview:

Message Name:

VIBRATION EXCEEDANCE

Message Code:

B3-303515

Associated CAS:

L ENGINE VIBRATION
(Caution)

Reporting LRU: L ENG EXCEEDANCE
System Description: 76-11-00
Schematic Diagram: 77-31-00 Sh. 2
Wiring Diagram: None

Message Description:

Left engine vibration threshold exceedance occurred.

[MCID 2008]
A Type 2 vibration exceedance has been detected.

Possible Causes:

  • Mechanical Bearing
  • Rotating Component

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. MCID 2008 fault present, troubleshoot using the following steps for aircraft and engine fault isolation with reference to the Light Engine Maintenance Manual Subtask 72-00-00-810-387-A01.

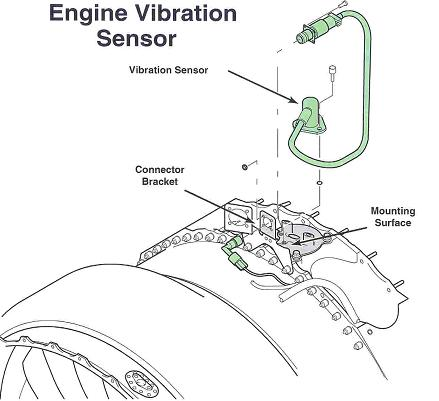

Vibration BlockVibration Sensor
