Message Overview:

Message Name:

FADEC PMA POWER A

Message Code:

B3-303689

Associated CAS:

R ENGINE MINOR FAULT
(Advisory)

Reporting LRU: R ENG ECU A
System Description: 76-11-00
Schematic Diagram: None
Wiring Diagram: None

Message Description:

Right engine FADEC PMA power fault A.

[MCID 0928]
FADEC PMA Power A.
A fault in the ECU A or the PMA was sensed.

Possible Causes:

  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit A (ECU) (A40)
  • Wiring Harness (W6)
  • Wiring Harness (W4)
  • Permanent-Magnet-Alternator (PMA) power A
  • Wiring Harnesses from the AIRCRAFT INTERFACE to the Engine RUN Switch
  • Engine RUN Switch
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

General Visual Inspection of the Engine Wiring Harness AMM 71-50-00-210-802
Removal of the FADEC Electrical Harness from the Right Engine AMM 71-50-05-000-803
Installation of the FADEC Electrical Harness on the Right Engine AMM 71-50-05-400-803
Removal of the Engine Electronic Control Unit (ECU) AMM 76-10-05-000-801
Installation of the Engine Electronic Control Unit (ECU) AMM 76-10-05-400-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. MCID 0928 fault present, troubleshoot using the following steps for aircraft and engine fault isolation with reference to the Light Engine Maintenance Manual Subtask 72-00-00-810-153-A01.

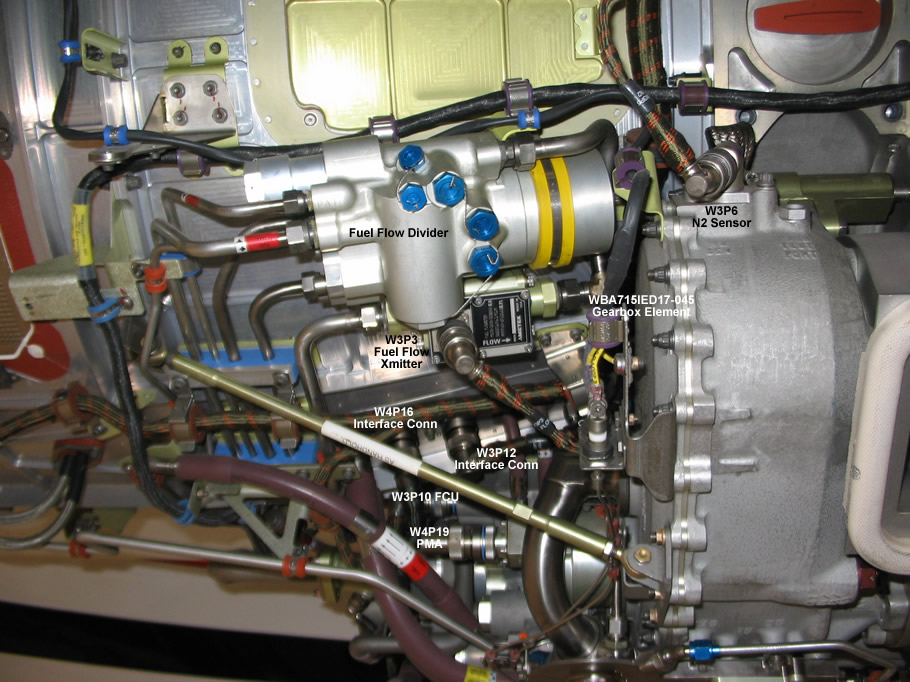

ENGECU
