Message Overview:

Message Name:

OIL FILTER BYPASS 4

Message Code:

B3-303620

Associated CAS:

R ENGINE OIL BYPASS
(Advisory)

Reporting LRU: R ENG OIL FILTER
System Description: 79-30-00
Schematic Diagram: 79-31-00
Wiring Diagram: None

Message Description:

Right engine oil filter bypass fault 4.

[MCID 1013]
Oil Filter Impending By-Pass 4.
A fault in the oil impending by-pass switch was sensed.

Possible Causes:

  • Oil Filter By-pass Valve Assembly
  • Wiring Harness (W6)
  • Wiring Harness (W4)
  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit A (ECU) (A40)
  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit B (ECU) (A42)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Engine Electronic Control Unit (ECU) AMM 76-10-05-000-801
Installation of the Engine Electronic Control Unit (ECU) AMM 76-10-05-400-801
Removal of the Oil Pump AMM 79-21-01-000-802
Installation of the Oil Pump AMM 79-21-01-400-802
Removal of the Oil Filter AMM 79-21-05-000-801
Installation of the Oil Filter AMM 79-21-05-400-801
Removal of the Chip Detector AMM 79-21-09-000-801
Installation of the Chip Detector AMM 79-21-09-400-801
Removal of the Oil Filter Bypass-Indicator AMM 79-31-01-000-802
Installation of the Oil Filter Bypass-Indicator AMM 79-31-01-400-802
Removal of the Oil Temperature Transducer AMM 79-31-05-000-801
Installation of the Oil Temperature Transducer AMM 79-31-05-400-801
Removal of the Oil Pressure Transducer AMM 79-31-09-000-801
Installation of the Oil Pressure Transducer AMM 79-31-09-400-801
Removal of the Oil Level Probe AMM 79-31-13-000-801
Installation of the Oil Level Probe AMM 79-31-13-400-801
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Honeywell recommends the troubleshooting and corrective action at the first opportunity to follow an oil filter impending bypass indication. If, abnormal debris is found in the filter or the time since the last filter change is unusually short, the engine can be operated a maximum of 10 hours. This applies if the criteria that follows is met:
    * No chips light.
    * The engine vibration levels are normal.
    * The oil temperature, pressure and other engine parameters are normal.
    * The opposite engine operating parameters are normal.
  2. MCID 1013 fault present, troubleshoot using the following steps for aircraft and engine fault isolation with reference to the Light Engine Maintenance Manual Subtask 72-00-00-810-173-A01.
  3. If an oil filter impending bypass indication has occurred and the above specifications are not met contact the Honeywell Customer Support Engineer before departure.

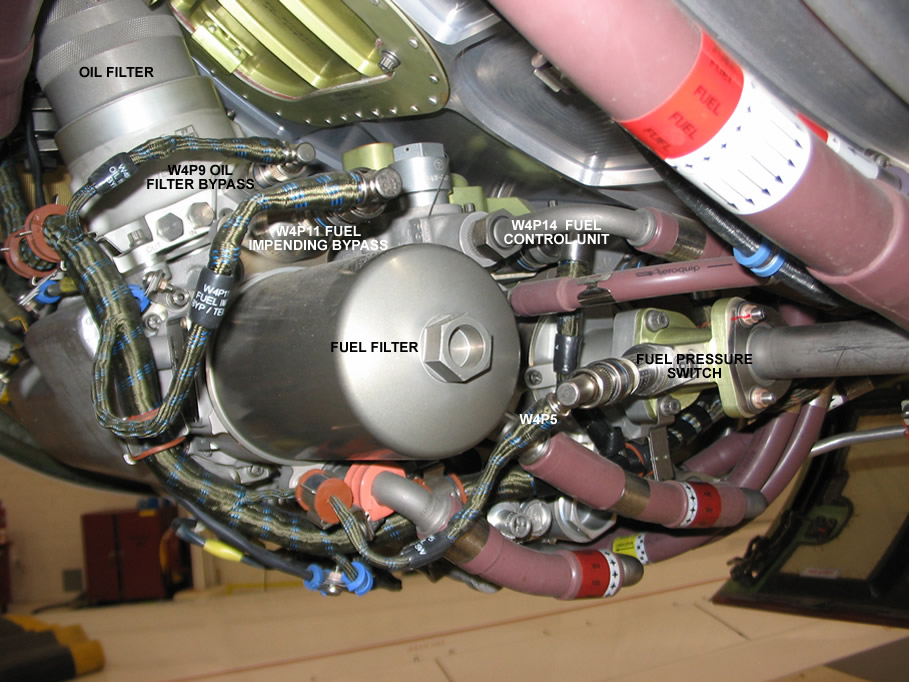

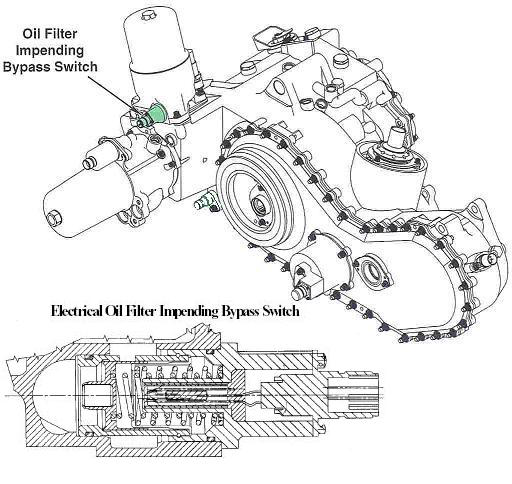

ENGOil FilterOil Filter
