04/26/21

Message Overview:

Message Name:

LEFT SIDE ANNUNICATOR LIGHTS INOP

Identifier: 331OBS001
Effectivity: AIRCRAFT 20501 - 20999
System: Lights
Associated CAS: None
System Description: 33-11-00
Schematic Diagram: 33-11-00
Wiring Diagram: 33-11-01

Message Description:

Annunciator lights for the left side of the airplane inop, Airshow screens inop, LAV light panel inop. The switches associated with the annunciators function, this can be verified on the systems synoptic pages.

The LDU is not a reportable LRU to the MDC, therefore there will be no MDC messages for this fault.

Possible Causes:

  • Integral Lighting Controller (PS8)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

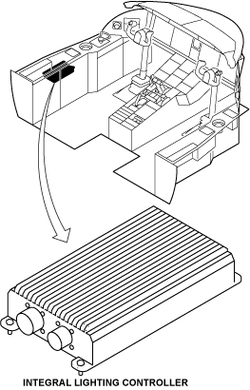

Component Location AMM 33-11-00-992-801
Removal of the Integral Lighting Controller AMM 33-11-01-000-801
Installation of the Integral Lighting Controller AMM 33-11-01-400-801
Operational Test of the Integral Lighting Controller AMM 33-11-01-710-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. Removed and replace the lamp driver power supply.
