Message Overview:

Message Name:

ALTITUDE FLAG (Warning)

Identifier: 341OBS002
Effectivity: AIRCRAFT 20501 - 20999
System: Navigation
Associated CAS: None
System Description: 34-17-00
Schematic Diagram: None
Wiring Diagram: 34-13-05
34-13-09

Message Description:

The red 'ALT' warning flag indicates invalid altitude source.

  • A loss of all data from the selected ADC, most likely caused by an Air Data Computer fault or power failure.
  • Verification of system failure can be checked on the MDC current fault page for further system details.

01_alt

Possible Causes:

  • None

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

None

Troubleshooting Recommendations:

Assure that the Air Data computer breakers are in, LH system CB1-C1, RH system CB2-C1. Pull and reset breakers, then recheck system for failures.

  • Switch the Air Data reversionary switch to the off side source "1" or "2"position. The amber AIR DATA PFD flag should identify a single ADC source has been selected. The red ALT warning flag indication should clear.
  • If the red ALT warning flag indication does not clear, and other air data sources are displayed, swap or replace the PFD.
  • If the red ALT warning flag indication clears, troubleshoot the on-side Air Data Computer system.

01_alt60_lh_cbpnl60_rh_cbpnl60_reversionary_switch

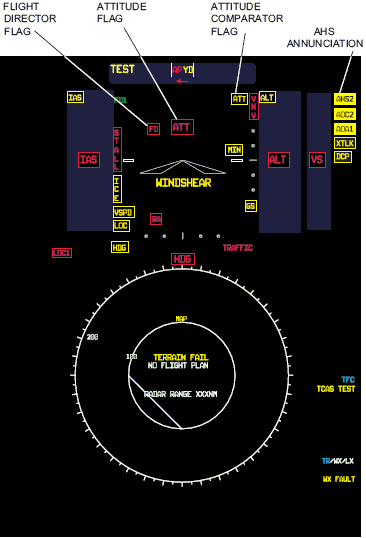

60_pfd_fail_indication
