Message Overview:

Message Name:

VERTICAL NAVIGATION FLAG (Warning)

Identifier: 346OBS002
Effectivity: AIRCRAFT 20501 - 20999
System: Navigation
Associated CAS: None
System Description: 34-61-00
Schematic Diagram: 34-61-00
Wiring Diagram: 34-61-03
34-61-07

Message Description:

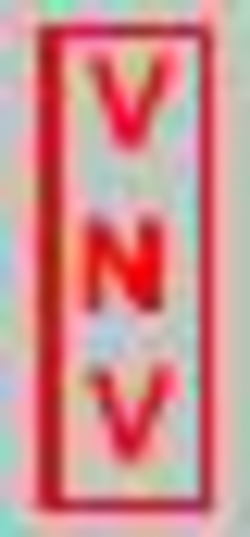

The red 'VNAV' warning flag indicates the vertical navigation is invalid.

  • Vertical navigation must be selected on the flight director system.
  • A loss of all data from the long range navigation system, most likely caused by the Flight Management System.
  • Troubleshooting using the MDC current fault page may help isolate the system, verify that power is available and check the data bus information.

01_vnv45_current_faults

Possible Causes:

  • Flight Management Computer 1 (FMC 1) (A4-FMC1)
  • Flight Management Computer 2 (FMC 2) (A4-FMC2)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Flight Management Computer (FMC) AMM 34-61-01-000-801
Installation of the Flight Management Computer (FMC) AMM 34-61-01-400-801
Removal of the Control Display Unit (CDU) AMM 34-61-05-000-801
Installation of the Control Display Unit (CDU) AMM 34-61-05-400-801
Removal of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-000-801
Installation of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-400-801
Functional Test of the VHF Navigation Receiver AMM 34-51-01-720-801
Operational Test of the Global Positioning System AMM 34-55-00-710-801
Standard Practices - Wire Repair SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Perform the functional test of the VHF Navigation system.
  2. Perform the operational test of the GPS system.
  3. Do close out.
