Message Overview:

Message Name:

VERTICAL NAVIGATION FLAG (Caution)

Identifier: 346OBS003
Effectivity: AIRCRAFT 20501 - 20999
System: Navigation
Associated CAS: None
System Description: 34-61-00
Schematic Diagram: 34-61-00
Wiring Diagram: 34-61-03
34-61-07

Message Description:

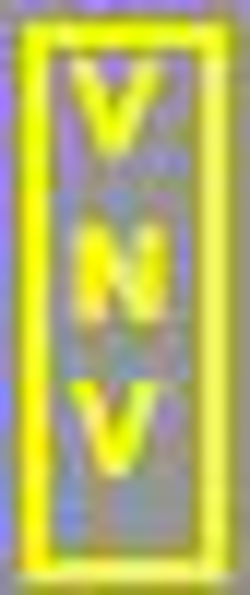

The amber 'VNAV' caution flag identifies that the on-side Vertical Navigation data is inaccurate.

  • Vertical navigation computations are made based on the loaded flight plan in the FMS. A valid flight plan and valid assent / descent profile need to be programmed. If the conditions are met, data bus information for display is internal to the IAPS from the Flight Management 850 cards.
  • MDC troubleshooting information may help isolate data validity, prior to component replacement and data bus ring-out.

01_vnv_c45_current_faults

Possible Causes:

  • Flight Management Computer 1 (FMC 1) (A4-FMC1)
  • Flight Management Computer 2 (FMC 2) (A4-FMC2)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Flight Management Computer (FMC) AMM 34-61-01-000-801
Installation of the Flight Management Computer (FMC) AMM 34-61-01-400-801
Removal of the Control Display Unit (CDU) AMM 34-61-05-000-801
Installation of the Control Display Unit (CDU) AMM 34-61-05-400-801
Removal of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-000-801
Installation of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-400-801
Standard Practices - Wire Repair SPM 20-12-10-02

Troubleshooting Recommendations:

  1. None
