02/26/21

Message Overview:

Message Name:

INVALID CONFIG STRAPPING

Message Code:

B3-007006

Associated CAS:

None

Reporting LRU: ISI
System Description: 34-12-00
Schematic Diagram: 34-12-00
Wiring Diagram: 34-12-01

Message Description:

The optional mode strapping is not valid. A wire is either not connected or shorted.

Possible Causes:

  • Integrated Standby Instrument (ISI) (A90)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

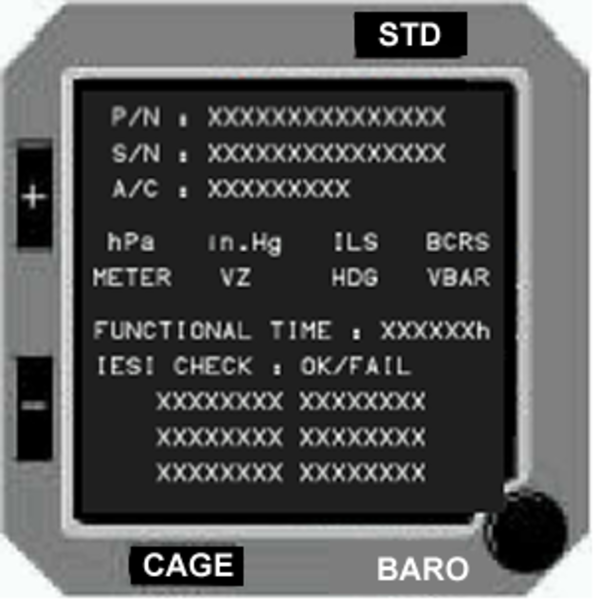

On ISI V2 (Post SB100-34-29 or 20501 - 20999), maintenance page is shown during 10 seconds after power up. Make sure selected options are shown.

Quick Links:

Removal of the Integrated Standby Instrument AMM 34-12-01-000-801
Installation of the Integrated Standby Instrument AMM 34-12-01-400-801
Functional Test of the Integrated Standby Instrument AMM 34-12-01-720-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. Do wiring check between ISI and terminal module. Repair as required.

    PIN FUNCTIONS STATE
    n ILS GND
    p MACH GND
    q SKID/SLIP GND
    r P.BARO UNIT GND
    s P.BARO UNIT GND
    k Parity OPEN

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  2. Replace ISI.
  3. Do close out.

isi
