Message Overview:

Message Name:

DEGRADED ARINC B INPUT

Message Code:

B3-007659

Associated CAS:

PROX SYS FAULT
(Advisory)

Reporting LRU: PSEU LRU
System Description: 32-60-00
Schematic Diagram: 32-61-00
Wiring Diagram: 32-61-12

Message Description:

Proximity Sensor Electronic Unit Channel B is missing expected ARINC input labels.

Possible Causes:

  • Proximity-Sensor Electronic Unit (PSEU) (A9)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW300-34-0189 - Pro Line 21 Advanced Avionics Nuisance Messages and FMS-6200 Issues (20501 - 20999)

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Data Concentrator Unit (DCU) AMM 31-41-01-000-802
Installation of the Data Concentrator Unit (DCU) AMM 31-41-01-400-802
Removal of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-000-801
Installation of the Input/Output Concentrator Unit (IOC) AMM 31-45-05-400-801
Removal of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-000-801
Installation of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-400-801
Functional Test of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-720-801
Standard Practices - Replace Wiring SPM 20-12-00-02
Standard Practices - Wire Repair SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Pull and reset the PSEU gear system breakers CB1-C13, CB1-C14,CB2-C13, CB2-C14, recheck the system for the fault.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  2. Reset the circuit breakers R IAPS CB CB2-B6, then look for other failures related to the Input Output Concentrators, swap the IOCs.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  3. Swap the IOCs.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  4. Replace the DCU.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  5. Replace the PSEU.
  6. Functional test the PSEU.

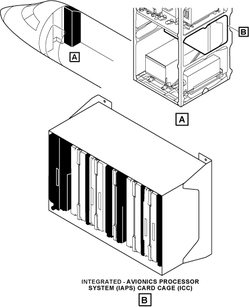

proximity_sensor60_lh_cbpnl60_rh_cbpnl300_3145_003_4300_3145_001
