Message Overview:

Message Name:

LFWSOV K59 OVLD FAULT

Message Code:

B3-307628

Associated CAS:

PROX SYS FAULT
(Advisory)

Reporting LRU: K59; LFWSOV
System Description: 32-60-00
Schematic Diagram: 32-61-00
Wiring Diagram: 29-12-33
32-61-09

Message Description:

Proximity Sensor Electronic Unit detects an overload condition on the discrete output to the LFWSOV Relay (K59).

Possible Causes:

  • Relay (K59)
  • Junction Box JB1 Circuit-Card 2 (JB1-DB2)
  • Proximity-Sensor Electronic Unit (PSEU) (A9)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Junction Box JB1 Circuit-Cards AMM 24-63-01-000-803
Installation of the Junction Box JB1 Circuit-Cards AMM 24-63-01-400-803
Operational Test of Junction Box JB1 Card 2 AMM 24-63-01-710-806

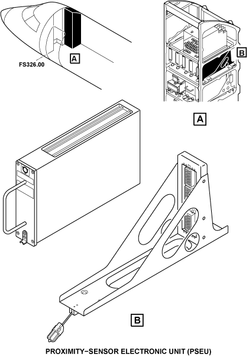

Removal of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-000-801
Installation of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-400-801
Functional Test of the Proximity-Sensor Electronic Unit (PSEU) AMM 32-61-09-720-801
Standard Practices - Replace Wiring SPM 20-12-00-02
Standard Practices - Wire Repair SPM 20-12-10-02

Troubleshooting Recommendations:

  1. Do wiring check from the JB1-DB2 connector JB1EP1 Pin 9 to the PSEU connector A9CP1 Pin 10C. Repair as required.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  2. Replace the Circuit Board 2 of the Junction Box 1.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  3. Replace the PSEU.
  4. Do close out.
