Message Overview:

Message Name:

A/I CONTROL VALVE 5

Message Code:

B3-302154

Associated CAS:

L ENG ANTI-ICE FAIL
(Caution)

L ENG A/ICE FAIL ON
(Advisory)

Reporting LRU: L ENG AI VALVE
System Description: 30-21-00
Schematic Diagram: 75-10-00 Sh. 1
Wiring Diagram: 75-10-01

Message Description:

Left engine anti-ice control valve fault 5.

[MCID 1207]
Anti-Ice Control Valve 5.
A mechanical failure of the engine anti-ice control valve was sensed.

Possible Causes:

  • Anti-ice Valve
  • Wiring Harness (W6)
  • Wiring Harness (W3)
  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit A (ECU) (A41)
  • Full Authority Digital Engine Control Unit (FADEC) Electronic Control Unit B (ECU) (A43)

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW300-36-0008 - "WING ANTI-ICE LEAK" EICAS Message During Climb

Forum Articles/Infoservice/Newsletter: None

  • Experience has shown that not turning the WAI OFF after a 'WING ANTI-ICE LEAK' CAS message could lead to an 'ENG THRUST FAULT' CAS message. Refer to the Advisory Wire listed above for more details.
  • When Batteries are 'ON' and engines are not running, if WAI is 'ON' while the rotary switch is on 'NORM', the L & R ENG THRUST FAULT CAS message will displayed.

Quick Links:

Component Location AMM 30-21-00-992-801
Operational Test of the Nacelle Anti-Ice System AMM 30-21-00-710-801
Removal of the Cowl Anti-Ice Valve AMM 30-21-01-000-801
Installation of the Cowl Anti-Ice Valve AMM 30-21-01-400-801
Removal of the Anti-Ice Dual Pressure Switch AMM 30-21-03-000-801
Installation of the Anti-Ice Dual Pressure Switch AMM 30-21-03-400-801
General Visual Inspection of the Engine Wiring Harness AMM 71-50-00-210-802
Removal of the FADEC Electrical Harness from the Left Engine AMM 71-50-05-000-802
Installation of the FADEC Electrical Harness on the Left Engine AMM 71-50-05-400-803
Removal of the Engine Electronic Control Unit (ECU) AMM 76-10-05-000-801
Installation of the Engine Electronic Control Unit (ECU) AMM 76-10-05-400-801
Wiring - Maintenance Practices - ALL SPM 20-12-00-02
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02
Electrical Connectors - Maintenance Practice - ALL SPM 20-20-00-02

Troubleshooting Recommendations:

  1. MCID 1207 task present, isolate per the Light Engine Maintenance Manual TASK 72-00-00-810-197.
  2. Check for the following MDC messages displayed with the fault:

    • X-channel bus 1A (MCID 0905)
    • X-channel bus 1B (MCID 0906)
    • X-channel discrete 1A (MCID 0933)
    • X-channel discrete 1B (MCID 0934)

    If any of the above MCID codes are posted, correct the cross-channel faults first.

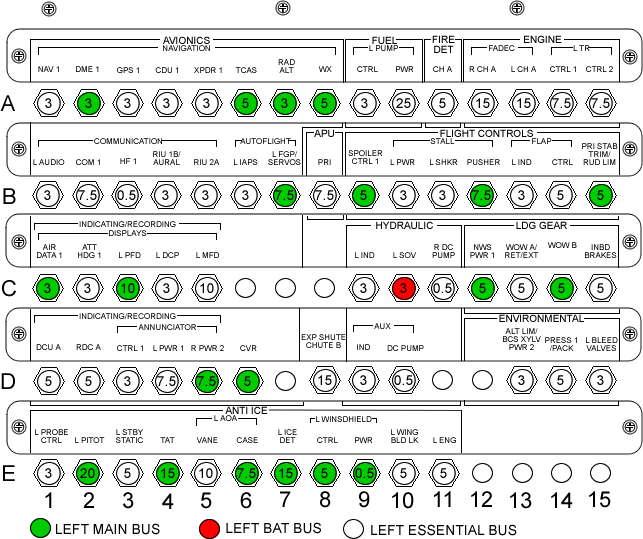

overview
