system description
arrow By ATA By Message Color By Observed Faults By CAIMS By Tips

Select color for CAS message that you wish to troubleshoot

(WARNING)
RED MESSAGE (CAUTION)
AMBER MESSAGE (ADVISORY)
CYAN MESSAGE (STATUS)
WHITE MESSAGE Require immediate crew attention. These messages are accompanied by flashing master warning, triple chime attenson with or without voice message or dedicated tone. Require immediate crew awareness and future crew action may be required in the form of alternate system selection or performance limitation. These message are accompanied by flashing master caution and a single chime. Indicate safe or normal system operation which require crew awareness, over and above the dark cockpit philosophy. Indicate minor failures or reduction in systems capability, which require no crew action.

This page includes :



For AOG assistance contact:

CRC Montreal (YUL)
Quick Links

05/13/16

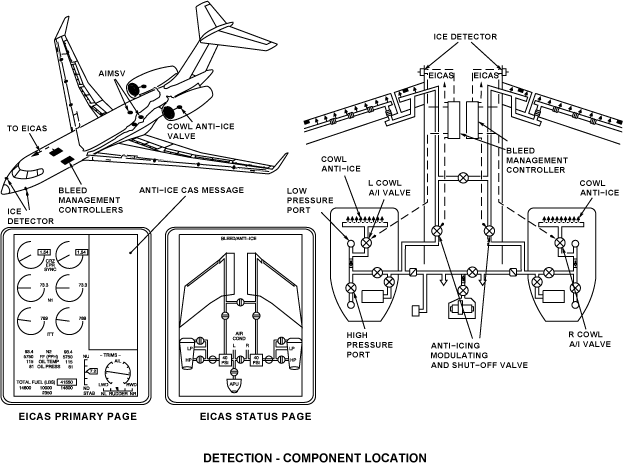

Overview

The detection system detects the ice which collects in certain areas of the aircraft. The system transmits data to the bleed management controller (BMC) which supplies a signal to automatically starts the anti-icing system.

The detection system continuously monitors the actual condition of the two ice detectors to prevent transmission of incorrect data on icing condition to the bleed management system. The detection system controls the detection of ice and the operation of the related anti-icing systems through the BMCs. For flight safety in icing conditions, the system is connected to the stall protection system. It sends warning messages to the engine indication and crew alerting system (EICAS) when icing conditions occur.
