10/01/19

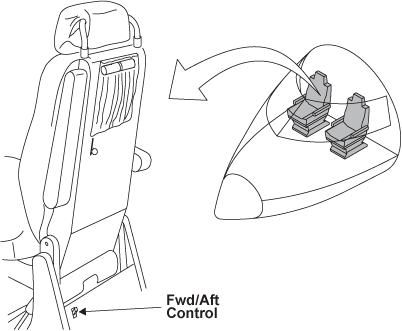

Crew Seat Forward/Aft Adjust Lever Cable Breakages
SB 700-25-023 for the Global Express, SB 700-1A11-25-019 for Global 5000, and vendor SB 871500-25-2146 introduced a lever integral stop to reduce the load on the lever cable.

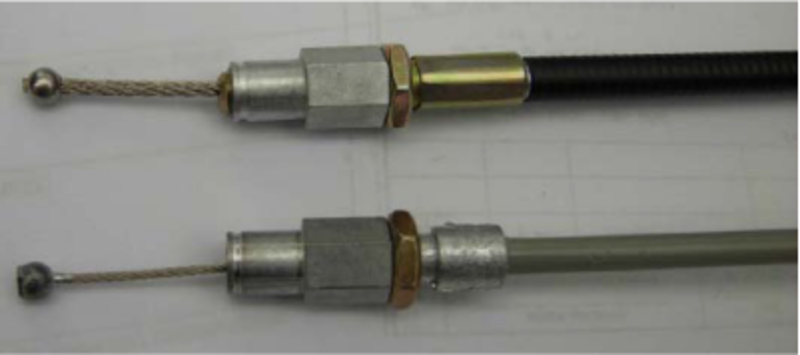

SB 700-25-025 for the Global Express, SB 700-1A11-25-021 for Global 5000, and vendor SB 871500-25-2147 introduced a thicker fore/aft lever cable for the crew seats. See photo below showing the new vs. original cable.
IMPORTANT:
SBs 700-25-025 and 700-1A11-25-021 have been placed on hold until further notice.
The new cables supplied per these SBs may not be the correct length. Please refer to Information Sheets 700-25-025 for Global Express and XRS, and 700-1A11-25-021 for Global 5000 for further details.
Pocket Door Troubleshooting Guide
Troubleshooting hints & tips for the latest version of the strut assisted Pocket Door.
This troubleshooting guide is applicable to the newest pocket door presently installed on the Global 6000 (cut in at 9677 & subs). This guide is also applicable, if the doors have been modified on your aircraft by incorporating the pocket door SB on the Global 6000, Express and XRS:
SBs: 700-25-049, 700-25-050, 700-25-047, 700-25-048, 700-25-6012, 700-25-6014, 700-25-6015, 700-25-6016 & 700-25-6020.
The latest version of the pocket door is an improved, more reliable pocket door system.
Troubleshooting hints & tips for the strut assisted Pocket Door with the footer that rolls in a track (footer wheel).
This troubleshooting guide is applicable to the pocket door that has a footer with a footer wheel that roll in a track when the door is deployed or stowed, presently installed on the Global 6000, GX, XRS. This style of door has been phased out at 9677 & sub.
09/16/21
Troubleshooting Guide for Pull-Out Tables
Non Structural Dummy Bulkhead Removal Tips
For a complete guide on how to remove the non structural dummy bulkhead, please review the following document:
