Overview

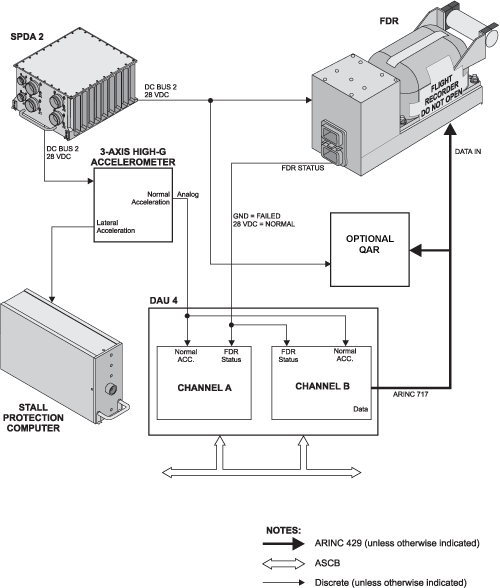

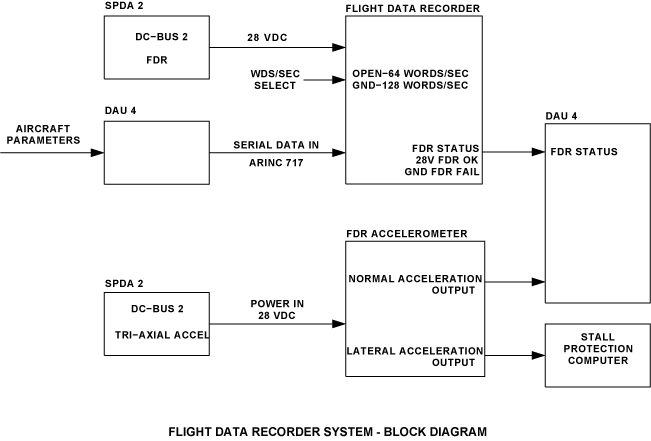

The flight data recording system receives data for the aircraft flight parameters from the data acquisition unit (DAU) 4 and makes a record for future analysis.

The solid-state flight data recorder (FDR) is a crash-survivable data recorder capable of retaining up to 25 hours of flight data. The handle of the FDR is an underwater locating device (ULD). Data is recorded into non-volatile memory to retain a history of aircraft parameters.

All stored information is retained after removal of electrical power. Data can be recovered from non-volatile memory via the FDR’s front panel using a Honeywell handheld download unit (HHDLU).This data can be read and analyzed using the Aircraft Data Recovery and Analysis Software (ADRAS) from Honeywell.

All Global aircraft operating under FAR Part 135 (or equivalent), carrying 10 or more passengers and manufactured after August 19, 2002 require additional aircraft parameters to be monitored and recorded. SB 700-31-020 incorporates this additional requirement in the aircraft starting with serial no. 9119.

Overview


05/19/16

Flight Data Recorder

The FDR is a solid-state flight data-recorder (SSFDR) that monitors and records real-time flight data in its non-volatile memory. Data can be retrieved or downloaded through the front connector of the FDR. The FDR is specially made to be resistant to shocks and heat related with an aircraft crash. The recorded aircraft data is thus available for examination after an accident.

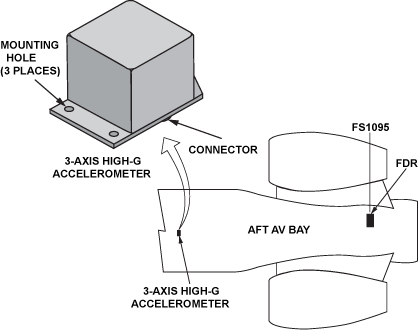

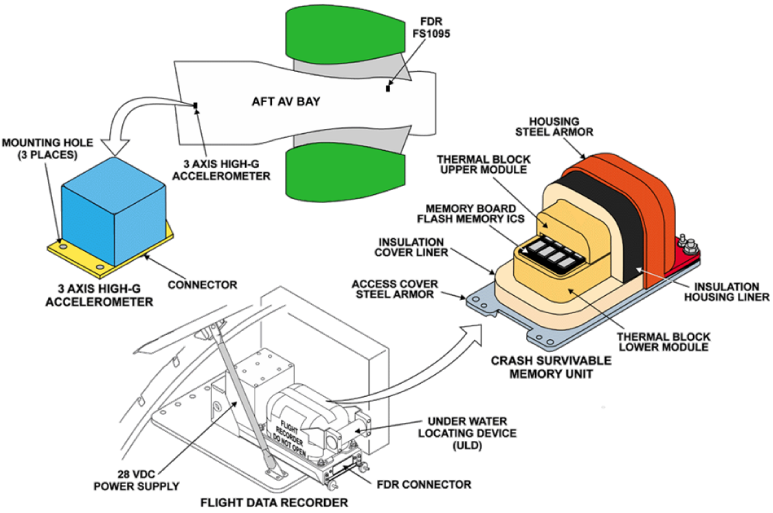

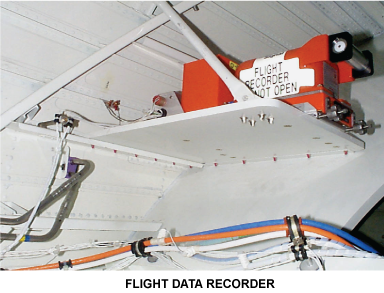

The FDR is located in the aft equipment compartment at FS1095 RHS. The FDR stores 25 hours of data in a solid-state memory. The FDR is a Line Replaceable Unit (LRU) and it includes four shop replaceable units (SRUs).

The SRUs are:

  • Interface and Controller Board (ICB)
  • Power Supply (PS)
  • Crash-Survivable Memory Unit (CSMU)

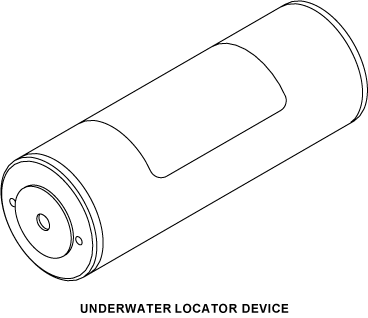

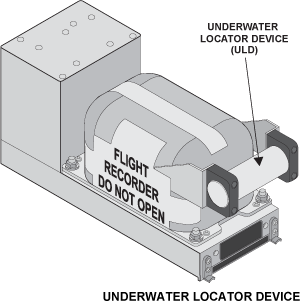

  • Underwater Locator Device (ULD)

Overview

The crash-survivable memory unit is enclosed in a heat shield and stainless steel package which protects it from shock and thermal damage. The FDR records all mandatory, additional, and optional parameters. The majority of data being recorded from the following systems:

  • ATA 34 (navigation)
  • ATA 72 (power plant)
  • ATA 22 (auto flight)
  • ATA 27 (flight control)
  • ATA 31 (indicating and recording)

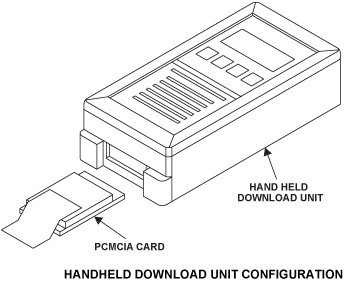

The data may be retrieved for analysis via an RS 422 serial link through the front panel connector using an HHDLU. The FDR records the parameters that follow:

FDR Parameters (256 WPS Format)
FDR Parameter Available In 128 WPS Format
Frame Counter Yes
Time (Hours) - UTC Yes
Time (Minutes) - UTC Yes
Time (Seconds) - UTC Yes
Altitude Pressure (Coarse) Yes
Altitude Pressure (Fine) Yes
Altitude Pressure Valid Yes
Airspeed - Indicated Yes
Airspeed - Indicated Valid Yes
Heading - Magnetic Yes
Magnetic Heading Valid Yes
Heading - True Yes
True Heading Valid Yes
Normal Acceleration Yes
Normal Acceleration Valid Yes
Pitch Angle Yes
Pitch Angle Valid Yes
Roll Angle Yes
Roll Angle Valid Yes
Pilot Hand Mic PTT (Push to Talk) Yes
Copilot Hand Mic PTT (Push to Talk) Yes
Pilot Mask/Boom PTT (Push to Talk) Yes
Copilot Mask/Boom PTT (Push to Talk) Yes
Third Crew Member Mask/Boom PTT (if applicable) Yes
L Engine EPR Yes
L Engine EPR Valid Yes
L Engine N1 Yes
L Engine N1 Valid Yes
R Engine EPR Yes
R Engine EPR Valid Yes
R Engine N1 Yes
R Engine N1 Valid Yes
EEC Alternate Control Mode EPR or N1 - Left Yes
EEC Alternate Control Mode EPR or N1 - Right Yes
AP Engaged Yes
Longitudinal Acceleration Yes
Longitudinal Acceleration Valid Yes
Pilot Elevator Column Posn Post SB 700-31-014 Yes
Pilot Elevator Column Posn Valid Post SB 700-31-014 Yes
Copilot Elevator Column Posn Post SB 700-31-014 Yes
Copilot Elevator Column Posn Valid Post SB 700-31-014 Yes
Pilot Handwheel Position Post SB 700-31-014 Yes
Pilot Handwheel Position Valid Post SB 700-31-014 Yes
Copilot Handwheel Position Post SB 700-31-014 Yes
Copilot Handwheel Position Valid Post SB 700-31-014 Yes
Rudder Pedal Position Post SB 700-31-014 Yes
Rudder Pedal Position Valid Post SB 700-31-014 Yes
L Elevator Pos'n - Analog Yes
L Elevator Position Valid Yes
R Elevator Position Yes
R Elevator Position Valid Yes
L Aileron Pos'n - Analog Yes
L Aileron Position Valid Yes
R Aileron Position Yes
R Aileron Position Valid Yes
MF Spoiler 1L Position Yes
MF Spoiler 1L Position Valid Yes
MF Spoiler 1R Position Yes
MF Spoiler 1R Position Valid Yes
MF Spoiler 2L Position Yes
MF Spoiler 2L Position Valid Yes
MF Spoiler 2R Position Yes
MF Spoiler 2R Position Valid Yes
MF Spoiler 3L Position Yes
MF Spoiler 3L Position Valid Yes
MF Spoiler 3R Position Yes
MF Spoiler 3R Position Valid Yes
MF Spoiler 4L Position Yes
MF Spoiler 4L Position Valid Yes
MF Spoiler 4R Position Yes
MF Spoiler 4R Position Valid Yes
Rudder Position Yes
Rudder Position Valid Yes
Lateral Acceleration Yes
Lateral Acceleration Valid Yes
Horz Stab Trim Position Yes
Horz Stab Trim Position Valid Yes
Flap Position Yes
Flap Position Valid Yes
Slat/Flap Ckpt Hndl Position Yes
Slat/Flap Ckpt Hndl Position Valid Yes
Slat Position Yes
Slat Position Valid Yes
EEC T/R Doors Deployed - Left Yes
EEC T/R Doors Deployed - Right Yes
EEC T/R Doors In Transit - Left Yes
EEC T/R Doors In Transit - Right Yes
EEC T/R Doors Inadvertent Deploy - Left Yes
EEC T/R Doors Inadvertent Deploy - Right Yes
Flt Spoiler Lever Pos'n Yes
Flight Spoiler Lever Position Valid Yes
L Inbd Ground Spoiler Pos'n Retracted Yes
L Outbd Ground Spoiler Pos'n Retracted Yes
R Inbd Ground Spoiler Pos'n Retracted Yes
R Outbd Ground Spoiler Pos'n Retracted Yes
Ground Lift Dump Manual Arm Yes
Ground Lift Dump Off Yes
Ground Lift Dump Unsafe Yes
Total Air Temperature Yes
Total Air Temperature Valid Yes
AP Failed Yes
YD Engaged Yes
YD Failed Yes
AP Monitor Failed Yes
YD Monitor Failed Yes
Trim Monitor Failed Yes
AFCS Sens Valid Complete Yes
TCS Active Yes
Manual Trim Active Yes
A/T 1 Mode Engage Priority Yes
A/T 2Mode Engage Priority Yes
Active Vert Cap Mode Yes
Auto Throttle Sync Mode Yes
AFCS 1 Mode/Engage Priority Yes
AFCS 2Mode/Engage Priority Yes
Active Lateral Cap Mode Yes
Auto Throttle Control Mode Yes
Selected Auto Throttle Yes
Auto Throttle Engage Status Yes
Auto Throttle Limit Mode Yes
L Radio Altitude (Coarse) Yes
L Radio Altitude (Fine) Yes
L Radio Altitude SSM Yes
R Radio Altitude (Coarse) Yes
R Radio Altitude (Fine) Yes
R Radio Altitude SSM Yes
Displayed Lat Dev PFD1 Yes
Displayed Lat Dev PFD1 Valid Yes
FMS Lat Dev PFD1 Yes
FMS Lat Dev PFD1 Valid Yes
Displayed Lat Dev PFD2 Yes
Displayed Lat Dev PFD2 Valid Yes
FMS Lat Dev PFD2 Yes
FMS Lat Dev PFD2 Valid Yes
Displayed Vert Dev PFD1 Yes
Displayed Vert Dev PFD1 Valid Yes
FMS Vert Dev PFD1 Yes
FMS Vert Dev PFD1 Valid Yes
Displayed Vert Dev PFD2 Yes
Displayed Vert Dev PFD2 Valid Yes
FMS Vert Dev PFD2 Yes
FMS Vert Dev PFD2 Valid Yes
Outer Marker Yes
Middle Marker Yes
Inner Marker Yes
AWF Circuit Breaker Off Yes
APU OVERTEMP Yes
APU OVERSPEED Yes
NORM BRAKE FAIL Yes
PARK BRAKE ON Yes
WING A/ICE OVHT Yes
CABIN ALT Yes
L OIL LO PRESS Yes
R OIL LO PRESS Yes
L REVERSER UNLKD Yes
R REVERSER UNLKD Yes
EMER PWR ONLY Yes
CONFIG SPOILERS Yes
CONFIG STAB TRIM Yes
CONFIG AIL TRIM Yes
CONFIG RUD TRIM Yes
L ENG FIRE Yes
R ENG FIRE Yes
APU FIRE Yes
MLG BAY OVHT Yes
SMOKE BAGGAGE Yes
SMOKE FWD LAV Yes
SMOKE AFT LAV Yes
SMOKE CLOSET AFT Yes
BRAKE OVHT Yes
CHECK PFD Yes
GEAR Yes
CONFIG SLAT/FLAT Yes
DUAL ENGINE OUT Yes
SMOKE AVIONICS BAY Yes
CABIN DELTA P Yes
SMOKE CLOSET FWD Yes
Triple Chime-Mstr Warn Yes
SMOKE CABIN Yes
Main Gear WOW (Weight on Wheels) Yes
LMG WOW (Weight on Wheels) Yes
RMG WOW (Weight on Wheels) Yes
NG WOW (Weight on Wheels) Yes
L Angle of Attack - SPC Ch A Yes
L Angle of Attack Valid Yes
R Angle of Attack - SPC Ch B Yes
R Angle of Attack Valid Yes
Hydraulic Pressure 1 Yes
Hydraulic Pressure 1 Valid Yes
Hydraulic Pressure 2 Yes
Hydraulic Pressure 2 Valid Yes
Hydraulic Pressure 3 Yes
Hydraulic Pressure 3 Valid Yes
Bleed Overpressure - LH Yes
Bleed Overpressure - RH Yes
Bleed Low Pressure - LH Yes
Bleed Low Pressure - RH Yes
Ground Speed Yes
Ground Speed Valid Yes
EGPWS Map Enable Yes
EGPWS Pop Up 1 Yes
EGPWS Pop Up 2 Yes
EGPWS Terrain Display Caution Alert Yes
EGPWS Terrain Display Warning Alert Yes
Ground Prox Warning Yes
Terrain Inhibit Yes
EGPWS Map INOP Yes
EGPWS Glideslope Alert Yes
EGPWS Inop Yes
L Gear Downlock B Yes
R Gear Downlock B Yes
Nose Gear Downlock B Yes
L Gear In Transit Yes
R Gear In Transit Yes
Nose Gear In Transit Yes
L Gear Not Safe Yes
R Gear Not Safe Yes
Nose Gear Not Safe Yes
L Gear Uplock Yes
R Gear Uplock Yes
Nose Gear Uplock Yes
Gear Handle Extend CMD Yes
Gear Handle Retract CMD Yes
L Main Gear Door Yes
R Main Gear Door Yes
L Nose Gear Door Yes
R Nose Gear Door Yes
Gear Disagree Yes
Nose Gear Down Ind B Bit Good Yes
Left Main Gear Down Ind B Bit Good Yes
Right Main Gear Down Ind B Bit Good Yes
Lamp 127 (Gear Muted) Yes
Drift Angle Yes
Drift Angle Valid Yes
Wind Speed Yes
Wind Speed Valid Yes
Wind Direction Yes
Wind Direction Valid Yes
Longitude (MSW) Yes
Longitude Yes
Longitude (LSW) Yes
Longitude Valid Yes
Latitude (MSW) Yes
Latitude Yes
Latitude (LSW) Yes
Latitude Valid Yes
Stick Pusher - Left Yes
Stick Shaker - Right Yes
Stick Pusher - Right Yes
Stick Shaker - Left Yes
Windshear Caution Alert Yes
Windshear Warning Alert Yes
Windshear INOP Yes
L Engine TRA Yes
L Engine TRA Valid Yes
R Engine TRA Yes
R Engine TRA Valid Yes
Left Engine Fuel Flow Yes
L Engine Fuel Flow Valid Yes
L Engine N2 Yes
L Engine N2 Valid Yes
L Engine EGT Yes
L Engine EGT Valid Yes
L Engine Vib - N1 Tracked Yes
L Engine Vib - N1 Tracked Valid Yes
R Engine Fuel Flow Yes
R Engine Fuel Flow Valid Yes
R Engine N2 Yes
R Engine N2 Valid Yes
R Engine EGT Yes
R Engine EGT Valid Yes
R Engine Vib - N1 Tracked Yes
R Engine Vib - N1 Tracked Valid Yes
EEC HPSOV Fuel Open - Left Yes
EEC HPSOV Fuel Open - Right Yes
EEC Fuel Feed Low Pressure - Left Yes
EEC Fuel Feed Low Pressure - Right Yes
EEC Fuel Switch Pos'n - Left Yes
EEC Fuel Switch Pos'n - Right Yes
TCAS Vertical Control Yes
MFD 1 TCAS Traffic Yes
TCAS RA Combined Control Yes
TCAS RA Down Advisory Yes
TCAS RA SSM Yes
TCAS RA Up Advisory Yes
Traffic Advisory Present Yes
Resolution Advisory Present Yes
TCAS Zoom Enable Yes
DME 1 Distance Yes
DME 1 Distance Valid Yes
DME 2 Distance Yes
DME 2 Distance Valid Yes
Nav 1 Channel Yes
Nav 1 Channel Valid Yes
Nav 2 Channel Yes
Nav 2 Channel Valid Yes
Baro Setting 1 Pilot (in-Hg) Yes
Baro Setting 1 Pilot (mB) Yes
Baro Set #1 Valid Yes
Baro Setting 2 Copilot (in-Hg) Yes
Baro Setting 2 Copilot (mB) Yes
Baro Set #2 Valid Yes
Selected Altitude Yes
Selected Altitude Valid Yes
FMS (Auto) Speed Ref Yes
FMS (Auto) Speed Ref CAS/Mach Yes
FMS (Auto) Speed Ref Valid Yes
Manual Speed Ref Yes
Manual Speed Ref - CAS/Mach Yes
Manual Speed Ref Valid Yes
Displayed Vert Speed Ref Yes
Displayed Flt Path Angle Ref Yes
Speed Ref (CAS) Yes
Speed Ref (Mach) Yes
Displayed Ref Mux Yes
Selected Heading Yes
Selected Heading Valid Yes
Vertical Speed Target Yes
Vertical Speed Target Valid Yes
Selected Course - PFD 1 Yes
Selected Course - PFD 1 Valid Yes
Desired Course Yes
Desired Course Valid Yes
Selected Decision Height Yes
Selected MDA Yes
PFD 1 DH/MDA Display Select Yes
MFD 1 Lightning Yes
MFD 1 Waypoints Yes
MFD 1 Airports Yes
MFD 1 Navaids Yes
MFD 1 Verical Profile Yes
MFD 1 FMS Source Yes
MFD 1 Weather Radar Yes
IAC 3 Active Yes
IAC 2 Active Yes
IAC 1 Active Yes
EICAS on DU 5 Yes
EICAS on DU 4 Yes
EICAS on DU 3 Yes
EICAS on DU 2 Yes
PFD 2 on DU 5 Yes
PFD 1 on DU 2 Yes
PFD 1 HSI Mode Yes
PFD 2 HSI Mode Yes
PFD 1 Baro Set Format Yes
PFD 2 Baro Set Format Yes
Speed Mode Select Yes
EFIS 1 PFD 1 Format Output Yes
EFIS 1 PFD 2 Format Output Yes
EFIS 2 PFD 1 Format Output Yes
EFIS 2 PFD 2 Format Output Yes
EFIS 3 PFD 1 Format Output Yes
EFIS 3 PFD 2 Format Output Yes
Displayed Nav Source - PFD 1 Yes
Displayed Nav Source - PFD 2 Yes
PFD 1 Displayed ATT/HDG Yes
PFD 1 Mag/True Heading Yes
PFD 2 Mag/True Heading Yes
PFD 2 Displayed ATT/HDG Yes
PFD Format - Metric Altitude Yes
PFD 2 Displayed Air Data Yes
PFD 1 Displayed Air Data Yes
Check Display Unit 1 Yes
Check Display Unit 2 Yes
Check Display Unit 3 Yes
Check Display Unit 4 Yes
Check Display Unit 5 Yes
Check Display Unit 6 Yes
Range Select Yes
MFD 1 Synoptic Format Yes
MFD 2 Synoptic Format Yes
EICAS Synoptic Format Yes
MFD 1 Nav Format Yes
L Engine EPR Command Yes
L Engine EPR Command Valid Yes
R Engine EPR Command Yes
R Engine EPR Command Valid Yes
L Engine N1 Command Yes
L Engine N1 Command Valid Yes
R Engine N1 Command Yes
R Engine N1 Command Valid Yes
L EPR Rating (MTO) No
L EPR Rating (MTO) Valid No
L EPR Rating (MCT) No
L EPR Rating (MCT) Valid No
L EPR Rating (Max Climb) No
L EPR Rating (Max Climb) Valid No
L EPR Rating (Max Cruise) No
L EPR Rating (Max Cruise) Valid No
R EPR Rating (MTO) No
R EPR Rating (MTO) Valid No
R EPR Rating (MCT) No
R EPR Rating (MCT) Valid No
R EPR Rating (Max Climb) No
R EPR Rating (Max Climb) Valid No
R EPR Rating (Max Cruise) No
R EPR Rating (Max Cruise) Valid No
EPR Rating Mode No
PFD 1 Navigation Source No
PFD 2 Navigation Source No
Ice Detected and A/I On - Left Yes
Ice Detected and A/I On - Right Yes
Ice Detected on Cowl (Level 1) - Left Yes
Ice Detected on Cowl (Level 1) - Right Yes
Ice Detected on Wing (Level 2) - Left Yes
Ice Detected on Wing (Level 2) - Right Yes
Ice Detected While A/I Off - Left Yes
Ice Detected While A/I Off - Right Yes
N2 Tracked Vibration - Engine 1 No
N2 Tracked Vibration - Engine 1 Valid No
N2 Tracked Vibration - Engine 2 No
N2 Tracked Vibration - Engine 2 Valid No
Broadband Vibration - Engine 1 No
Broadband Vibration - Engine 1 Valid No
Broadband Vibration - Engine 2 No
Broadband Vibration - Engine 2 Valid No
L Engine Overheat No
R Engine Overheat No
EEC Oil Temp High Redline Valid - LH Yes
EEC Oil Temp High Redline Valid - RH Yes
EEC Oil Pressure Below Redline - LH Yes
EEC Oil Pressure Below Redline - RH Yes
L Engine Overspeed No
R Engine Overspeed No
EEC Engine N1 Redline Exceed - LH Yes
EEC Engine N1 Redline Exceed - RH Yes
EEC Engine N2 Redline Exceed - LH Yes
EEC Engine N2 Redline Exceed - RH Yes
Rudder Trim Position Yes
Rudder Trim Position Valid Yes
Aileron Trim Position Yes
Aileron Trim Position Valid Yes
Inboard Brake Pressure - Left No
Inboard Brake Pressure - Left Valid No
Inboard Brake Pressure - Right No
Inboard Brake Pressure - Right Valid No
Outboard Brake Pressure - Left No
Outboard Brake Pressure - Left Valid No
Outboard Brake Pressure - Right No
Outboard Brake Pressure - Right Valid No
Brake System Otbd Pressure Low Yes
Brake System Inbd Pressure Low Yes
Brake Pedal Posn Pilot - Right Yes
Brake Pedal Posn Pilot Valid - Right Yes
Brake Pedal Posn Pilot - Left Yes
Brake Pedal Posn Pilot Valid - Left Yes
Brake Pedal Posn Copilot - Left Yes
Brake Pedal Posn Copilot Valid - Left Yes
Brake Pedal Posn Copilot - Right Yes
Brake Pedal Posn Copilot Valid - Right Yes
Slip Skid Yes
Slip Skid Valid Yes
High-Pressure Shutoff Value (HPV) Full Open - Left Yes
High-Pressure Shutoff Value (HPV) Full Open - Right Yes
Bleed Pressure Shutoff Value (PRV) Full Open - Left Yes
Bleed Pressure Shutoff Value (PRV) Full Open - Right Yes
Engine Cowl Anti-Ice Vlv (CAIV) Left Yes
Engine Cowl Anti-Ice Vlv (CAIV) Right Yes
Crossbleed Valve (CBV) Full Open Yes
Crossbleed Valve (CBV) Full Closed Yes
Wing Anti Ice Cross Bld Viv (CBW) Full Open Yes
Wing Anti Ice Cross Bld Viv (CBW) Full Closed Yes
Wing A/I Press Mod S/O Viv (WAIV) Open - Left Yes
Wing A/I Press Mod S/O Viv (WAIV) Open - Right Yes
AC Bus 4 Status Yes
AC Bus 3 Status Yes
AC Bus 2 Status Yes
AC Bus 1 Status Yes
AC ESS Bus Yes
RAT Deployed Yes
RAT Voltage In Range Yes
DC Bus 2 Status Yes
DC Bus 1 Status Yes
DC Battery Bus Status Yes
DC ESS Bus Status Yes
DC Emer Bus Connected to AV Batt Direct Bus Yes
DC Emer Bus Connected to DC Batt Bus Yes
DC APU Batt/DC Ext Pwr Load Valid Yes
APU Load Control Valve (LCV) Full Open Yes
Cabin Altitude Yes
Cabin Altitude Valid Yes
EEC FADEC Maint DND - Left Yes
EEC FADEC Maint DND - Right Yes
Stall Protection Failed - Left Yes
Shaker 1 Failed - Left Yes
Shaker 2 Failed - Left Yes
Stall Protection Failed - Right Yes
Shaker 1 Failed - Right Yes
Shaker 2 Failed - Right Yes
A/T 1 System Status Yes
A/T 2 System Status Yes
ADC 1 System Status Yes
ADC 2 System Status Yes
ADC 3 System Status Yes
DAU 1A System Status Yes
DAU 1B System Status Yes
DAU 2A System Status Yes
DAU 2B System Status Yes
DAU 3A System Status Yes
DAU 3B System Status Yes
DAU 4A System Status Yes
DAU 4B System Status Yes
DC 1 System Status Yes
DC 2 System Status Yes
DC 3 System Status Yes
EFIS 1 System Status Yes
EFIS 2 System Status Yes
EFIS 3 System Status Yes
FMCS 1 System Status Yes
FMCS 2 System Status Yes
FMCS 3 System Status Yes
FMCS 1 Mode/Engage Priority Yes
FMCS 2 Mode/Engage Priority Yes
FMCS 3 Mode/Engage Priority Yes
FWC 1 Mode/Engage Priority Yes
FWC 2 Mode/Engage Priority Yes
FWC 3 Mode/Engage Priority Yes
FWC 1 System Status Yes
FWC 2 System Status Yes
FWC 3 System Status Yes
IRS 1 System Status Yes
IRS 2 System Status Yes
IRS 3 System Status Yes
AFCS 1 System Status Yes
AFCS 2 System Status Yes
Engine Out Left (EEC Failure) No
Engine Out Lt Valid (EEC Failure) No
Engine Out Right (EEC Failure) No
Engine Out Rt Valid (EEC Failure) No
EEC_1A FADEC Label 270 Valid (Left) No
EEC_1B FADEC Label 270 Valid (Left) No
EEC_2A FADEC Label 270 Valid (Right) No
EEC_2B FADEC Label 270 Valid (Right) No
FCU_1A Label 270 Validity No
FCU_1B Label 270 Validity No
FCU_2A Label 270 Validity No
FCU_2B Label 270 Validity No
SPC_A Label 270 Validity No
SPC_B Label 270 Validity No
Heads Up Display On Yes
Heads Up Display INOP Yes
HFDS Power On No
EVS Display Mode No
EVS CAL No
Sensor On Command No
Sensor Cooling Down No
Manual Trim Active No
Automatic Trim Engaged No
AP Pitch Trim Active No
Mach Trim Off No
Control Wheel FTU Pilot No
Control Wheel FTU Pilot Valid No
Control Wheel FTU Copilot No
Control Wheel FTU Copilot Valid No
Control Column FTU Pilot No
Control Column FTU Pilot Valid No
Control Column FTU Copilot No
Control Column FTU Copilot Valid No
Rudder Pedal FTU Pilot Left No
Rudder Pedal FTU Pilot Left Valid No
Rudder Pedal FTU Pilot Right No
Rudder Pedal FTU Pilot Right Valid No
Rudder Pedal FTU Copilot Left No
Rudder Pedal FTU Copilot Left Valid No
Rudder Pedal FTU Copilot Right No
Rudder Pedal FTU Copilot Right Valid No

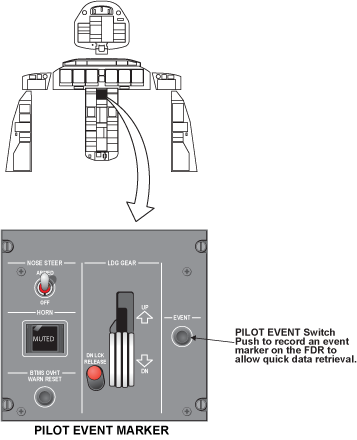

Pilot Event Marker Yes
PFD SEL (Couple) Status Yes
Pre Dual PFD SEL Status Yes
Left Selected EEC DAU Channel - DAU Yes
Right Selected EEC DAU Channel - DAU Yes
Left Selected EEC DAU Channel - FWC Yes
Right Selected EEC DAU Channel - FWC Yes
DC 1 Outputs Synoptic Yes
DC 2 Outputs Synoptic Yes
DC 3 Outputs Synoptic Yes
EMERGENCY DESCENT Yes
Spare Red Message Yes
Spare FWC Processed Yes
Spare Discrete Yes
Spare AFCS Processed No
AFCS Subsystem Status No
Internal Fault No
Interface Fault No
Probe Fault No
Maintenance Alert No
MADS Subsystem Status No
AOA Status No
Total Air Temp Status No
Engine Running (1) No
Engine Running (2) No
EEC Engine Out (1) No
EEC Engine Out (2) No
Crossbleed Valve (CBV) Status No
Oil Quantity Low No
Oil Pressure Sensor Fail No
Wing Tank Fuel Leak Into CTR Tank No
Total Fuel QTY Low Alert No
L Fuel QTY Low Alert No
R Fuel QTY Low Alert No
L Primary Pumps FL No
R Primary Pumps FL No
APU SOV: APU SOV FL No
Left Eng SOV: L Eng SOV FL No
Right Eng SOV: R Eng SOV FL No
Left Wing Overfill No
Right Wing Overfill No
L Wing Fuel Temp Low No
R Wing Fuel Temp Low No
L Wing Fuel Temp High No
R Wing Fuel Temp High No
L Fuel Recirc FL No
Lt Wing Heavy No
Rt Wing Heavy No
Lt to Rt Xfer FL On No
Lt to Rt Xfer FL No
Rt to Lt Xfer FL On No
Rt to Lt Xfer FL No
Aft Xfer Msmgmt Alrt: Aft Tank Off Schedule (C) No
Manual Aft Xfer Off Schd Aft Tank Off Schd (A) No
Lt Aft Xfer FL On No
Rt Aft Xfer FL On No
Aft Tank Fuel Xfer Alert: Aft Xfer FL No
Center Tank Xfer Fault: Center Xfer Mgmnt Fault No
Center Tank Xfer Failed: Center Xfer FL No
R Fuel Recirc FL No
Yaw Damper 1 Heater Status No
Yaw Damper 1 Heater On No
TAT 3 Heater Status No
TAT 3 Heater On No
TAT 1 Heater Status No
TAT 1 Heater On No
AOA 1 Heater Status No
AOA 1 Heaters On No
PS 3 Heater Status No
PS 3 Heaters On No
PS 1 Heater Status No
PS 1 Heaters On No
LT Cabin Prs Rate of Change No
LT Cabin Prs Rate of Change Valid No
RT Cabin Prs Rate of Change No
RT Cabin Prs Rate of Change Valid No
Yaw Damper 2 Heater Status No
Yaw Damper 2 Heater On No
TAT 2 Heater Status No
TAT 2 Heater On No
PS 2 Heater Status No
PS 2 Heater On No
STBY PS Heater Status No
STBY PS Heater On No
AOA 2 Heater Status No
AOA 2 Heater On No
Flaps In Motion No
Slats In Motion No
Flaps Failed No
SFCU Flap Failure No
Slats Failed No
SFCU Slat Failure No
Flap System Overheat No
Slat System Overheat No
LT Emergency Door Status No
All Doors Safe No
RT Emergency Door Status No
Equipment Door Status No
Baggage Door Status No
Passenger Door Status No
Abnormal AP Disconnect No
Normal AP Disconnect No
Total Fuel Quantity No
Total Fuel Quantity Valid No
Left Wing Tank Fuel Quantity No
Left Wing Tank Fuel Quantity Valid No
Right Wing Tank Fuel Quantity No
Right Wing Tank Fuel Quantity Valid No
Center Tank Fuel Quantity No
Center Tank Fuel Quantity Valid No
Aft Tank Fuel Quantity No
Aft Tank Fuel Quantity Valid No
Initiated Xfer Request No
Lateral Offset No
Degraded Accuracy No
Navigation Mode No
Mag/True Mode No
Number of Wpts to Sequence No
CDU Msg (Alerting Only) No
Dead Reckoning No
APPR Sensitivity No
Initiated Xfer Direction No
Mach Valid No
FLCH Mode Rqst (VFLCR) No
V/S Mode Request (VPTHR) No
Alt Hold Request (VALTR) No
Throttle Idle Rqst (IDLRQ) No
To/From the To Waypoint No
LNAV Status No
VNAV & AFCS Engaged No
Altitude Alert Inhibit No
VNAV Altitude Alert Guidance Mode No
LNAV Armed No
LNAV Captured No
Speed Target Source No
Speed Target Active No
CAS/Mach No
Flt Phase (Lat Scale) (MSB) No
Flt Phase (Lat Scale) No
Flt Phase (Lat Scale) (LSB) No
FMS In Approach Mode No
Lateral Dev Scale Alert No
Master/Slave Status No
Dual Nav Pair No
Database Transfer No
Mode/Engage Priority (Selected NZ) No
Vert Dev Scale Alert No
EPR Flex or Manual Valid No
Thrust Mode 4 No
Engine Synch Mode No
EPR Flex or Manual No
Autothrottle EICAS Msg 1 No
Autothrottle EICAS Msg 2 No
Autothrottle EICAS Msg 3 No
Autothrottle EICAS Msg 4 No
AFCS EICAS Msg Request 1 No
AFCS EICAS Msg Request 2 No
AFCS EICAS Msg Request 3 No
AFCS EICAS Msg Request 4 No
AFCS EICAS Msg Request 5 No
AFCS EICAS Msg Request 6 No
Aileron Tach (Raw) No
Aileron Relay (Debounced) No
Aileron Motor Volts (Raw) No
Aileron Clutch (Debounced) No
Elevator Tach (Raw) No
Elevator Relay (Debounced) No
Elevator Motor Volts (Raw) No
Elevator Clutch (Debounced) No
Rudder Linear Actuator Pos (Raw) No
Rudder Linear Actuator Relay (Debounced) No
Rudder Motor Volts (Raw) No
Rudder Linear Act Brake (Debounced) No
L Eng Fire No
R Eng Fire No
APU Fire No
Brake Fail No
Stall No
Smoke No
L Reverser Unsafe No
R Reverser Unsafe No
SELCAL No
No Takeoff No
Cabin Altitude No
Overspeed No
Gear Bay Overheat No
Landing Gear No
Aural Warning Output Level No
Aural Warning Fault Tone Gen Discretes No
AWF VTA No
AWF A/T Off Abnormal No
AWF A/T Off Normal No
AP Trim Clacker No
AP Off - Normal No
Spare Discrete No
Alt Alert - Capture No
AWF Test 1 No
Master Caution No
Minimums No
AP Off - Abnormal No
Alt Alert - Departure No
Single Chime No
AWF Test No
Impact/Dynamic Pressure No
Total Pressure No
Body Pitch Rate No
Body Pitch Rate Valid No
Body Roll Rate No
Body Roll Rate Valid No
Body Yaw Rate No
Body Yaw Rate Valid No
EPR/N1 At Max Climb Rating No
AT Engaged No
AT In Throttle Hold No
AT Manual Override No
AT In Eng Synch No
Excess Speed Error No
A/T In FLC Descent No
A/T Normal Disconnect No
EPR/N1 At Upper Limit No
EPR/N1 At Lower Limit No
Left TRA Trim No
Left Trim Enabled No
Right TRA Trim No
Right Trim Enabled No
Low Speed Limit No
Left Engage Request No
Right Engage Request No
Throttle Quad Failed No
Synch Auth Lmtd EICAS Msg No
Normal AP Diseng No
Normal YD Diseng No
Upper Speed Limit Type No
Displayed Indicated Airspeed No
Displayed Indicated Airspeed Valid No
Date (Year - Tens Digit) No
Date (Year - Ones Digit) No
Date (Month - Tens Digit) No
Date (Month - Ones Digit) No
Date (Day - Tens Digit) No
Date (Day - Ones Digit) No
Vertical FD Command No
In View Logic No
Lateral FD Command No
Flight Control Force Sensors Installation No
Synch Word Yes
Emergency Descent (Aural) No
AWF Test 2 No

After the FDR receives data from the data acquisition unit no. 4 (DAU 4), it sends the same data back to DAU 4 to make sure there are no errors. Data can be retrieved from the FDR with a ground support equipment (GSE) or ground based equipment (GBE) which is the hand held download unit (HHDLU). Data is downloaded through RS-422 communications link connected to the ATE connector on the front panel of the SSFDR.


10/30/17

Underwater Locator Device

The underwater locator device (ULD) is a battery-operated, underwater acoustic pulse-generator. The ULD operates when it is in water. The ULD is installed on the front of the FDR.

The ULD is mounted on the front of the recorder and also serves as a handle. Four mounting bolts firmly attach the ULD directly to the front of the crash survivable memory unit (CSMU) to avoid separation in the event of a crash. The ULD contains an acoustic beacon, a battery, and a water-activated switch. When water shorts the switch contacts, the beacon activates and transmits pulses on an ultrasonic frequency. The ULD battery has a life time limit and must be replaced by the labeled expiry date.

The ULD’s operating frequency is 37.5 kHz at one pulse per second with a pulse length of 10 msec. Depending on the model, the ULD will operate for 30 days or 90 days.

The ULD has a water switch, a battery, an oscillator, and a transducer. When the water switch is wet, the battery supplies power to the oscillator. The oscillator causes the transducer to send out a 37.5 kHz signal. The signal is transmitted for 30 days or 90 days at a range of 2,000 to 4,000 yards (1,800 to 3,600 m).

Overview


Handheld Download Unit (HHDLU)

The HHDLU is a portable tool used to download the SSFDR recording via a RS 422 interface. The HHDLU connects to the front connector of the SSFDR. The downloaded data is stored on a removable PC memory card. The PC memory card allows the downloaded data to be easily transferred to PC for analysis. Four entry keys control the operation and a four-line display indicates progress.

Overview

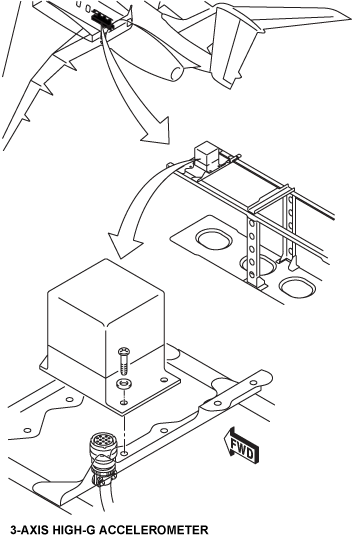

3-Axis High-G Accelerometer

The high-G accelerometer is located in the left main-gear-landing wheel well at FS723.

Overview

The triaxial accelerometer (high-G accelerometer) is a sealed instrument and contains three isolated pendulum sensors for 3 orthogonal axes. Each sensor measures acceleration (force) along its axis. The 3 axes with their force ranges are as follows:

  • Longitudinal axis (fwd/aft direction) (+1g/-1g)
  • Lateral axis (left/right direction) (-1g/+1g)
  • Vertical axis (up/down direction) (+6g/-3g)

The accelerometer output goes to DAU 4 before it is supplied to the FDR. A status message shows FDR ACCEL FAIL when the accelerometer is out of tolerance.

Overview


Data Acquisition Unit No. 4

DAU 4 receives normal acceleration analog data from the dedicated 3-axis high-G accelerometer and SSFDR status from the SSFDR. DAU 4 provides data to FDR, and the optional Quick Access Recorder (QAR), at the rate of 128 words per second via ARINC 717 data bus. Date and time synchronization with the cockpit voice recorder (CVR) is also provided by DAU 4. With SB 700-31-020 incorporated the DAU 4 rate has been increased to 256 words per second.


Pilot Event Marker

The pilot event marker is located on the right hand side of landing gear panel.

Overview

This event marker operates for FDR and CAIMS events simultaneously when it is pressed.

In FDR operation, an event signal is sent to the recorder for the purpose of allowing quick data retrieval when the PEM is pressed.

In CAIMS operation, special sets of data are recorded to all members NVM memory when PEM is pressed.


05/19/16

System Operation

The SSFDR enters initialization mode immediately upon application of primary power. The SSFDR initializes and performs a built-in test within 500 milli seconds of the application of power. If the self-test fails, the external BITE amber light on the SSFDR's front panel will be illuminated together with the "FDR FAIL" advisory message displayed on EICAS.

The SSFDR records the data from DAU 4 via the Harvard biphase serial ARINC 717 bus at the rate of 128 words per second (256 words per second with SB 700-31-020 incorporated). Programmed pins of the rear connector are used to identify the data rate expected from DAU 4. If no ARINC 717 data stream is present for more than five seconds, the SSFDR activates the system status flag and stops the recording process. A "FDR FAIL" advisory message will be displayed on the EICAS, however, the SSFDR external BITE light will not be illuminated. The recorder puts a digital stream of data into a solid-state memory module which has a capacity to retain 25 hours of data. When the memory module is full, the oldest data is overwritten. The memory module is enclosed in a heat shield and stainless steel package which protects it from shock and thermal damage.

FDR Mapping Update for Batch 3: The FDR ARINC 717 bus mapping for both the high speed (256 WPS) and the low speed (128 WPS) FDR configurations has been modified to accommodate additional parameters associated with VGP and LPV approaches. VGP has been incorporated into the baseline functionality of the Batch 3 program, and LPV approaches have been included to support the strapable LPV option.

An event marker can be added to the SSFDR memory by pushing the pilot event marker (PEM) on the landing gear panel.

To extract the recorded data without removing the SSFDR from the aircraft, or to monitor the real time parameters as they are recorded, a portable handheld download unit (HHDLU) can be used.

Using the HHDLU, flight data is retrieved from the FDR via an RS 422 serial link at 750 K baud through the front panel connector.

While downloading data via the HHDLU, normal flight recording is inhibited, and the SSFDR status signal indicates a failure.

The downloaded data is stored into a removable PCMCIA memory card, which can be used with the aircraft data recovery and analysis software program (ADRAS) PC-based software program for further analysis

The 3-axis High-G accelerometer provides an analog normal acceleration output to DAU 4 for use by the FDR.

The normal acceleration signal has a range of +3G to − 6G and is provided to the FDR via the ARINC 717 data bus interface with DAU 4. The accelerometer also provides an analog lateral acceleration output to the stall protection computer (SPC).


05/19/16

System Interface

The FDR system connects with the aircraft systems that follow:

  • DAU 4 of the engine indication and crew alerting system (EICAS)
  • Secondary power-distribution assembly (SPDA)
  • Voice recorder system
  • Stall protection system



Signal Interface

The SSFDR connects to the aircraft's DAU 4 to receive ARINC 717 data. This data is also fed to the optional Quick Access Recorder (QAR).

The accelerometer provides an analog normal acceleration output to DAU 4 for use by the SSFDR and lateral acceleration to stall protection computer (SPC).

The SSFDR sends a discrete signal to DAU 4 for health status. The discrete signal is 28 VDC when normal and ground when failure is detected.

Power Inputs

The SSFDR and 3-axis high-G accelerometer both receive power input from SPDA 2, 28 VDC BUS 2 power. The optional QAR shares the FDR 28 VDC power via JB6.

Overview


System Test

FDR BIT Test

The SSFDR performs a built-in test (BIT) to determine its status upon power-up as well as throughout normal recorder operations. A history of the BIT’s status is stored within the CSMU. A Status discrete signal is sent to the DAU to indicate SSFDR health.

The status discrete will be set for system failures which affect the ability of the SSFDR to record data. This discrete is used to drive the "FDR FAIL" EICAS message.

When the "FDR FAIL" advisory message is displayed on EICAS, a code is logged into the non-volatile memory of the recorder.

ULD Test

The underwater locating device is tested by shorting the water switch contacts and monitoring the transmission with an ultrasonic receiving test set.

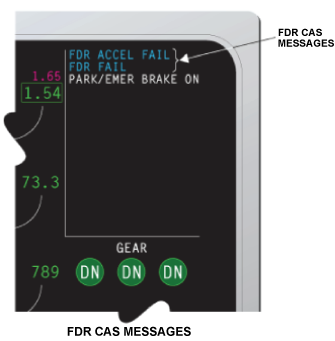

Fault Indications

FDR

When the FDR fails and proper electrical power is available, a ground is fed to DAU 4 and a "FDR FAIL" advisory message is displayed on the EICAS page. If the power source is not available, the fail message will be inhibited.

3-Axis High-G Accelerometer

A "FDR ACCEL FAIL" advisory message is displayed on the EICAS display when the aircraft is on the ground, the parking brake is set, and the 3-axis high-G accelerometer is out of limits or there is no signal.

Overview


09/08/20

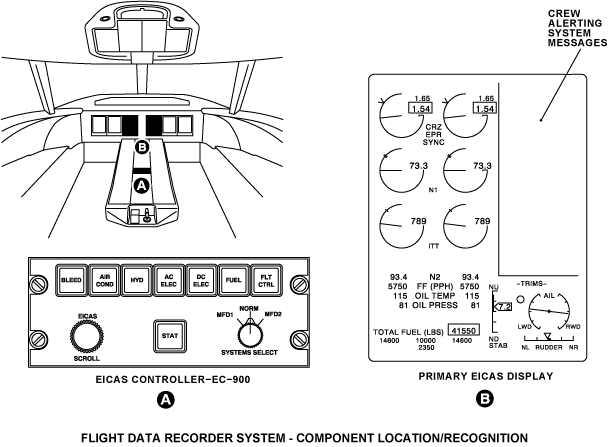

Component Location Index

Component Location Index
IDENT DESCRIPTION LOCATION IPC REF
A39 FLIGHT DATA RECORDER ZONE(S) 332 31-31-01 [ GX ] [ GXRS ] [ G5000 ]
MT11 HIGH-G ACCELEROMETER ZONE(S) 165 31-31-05 [ GX ] [ GXRS ] [ G5000 ]


Registered and/or unregistered trademarks of Bombardier Inc. or its subsidiaries. © 2015 Bombardier Inc. All rights reserved.
