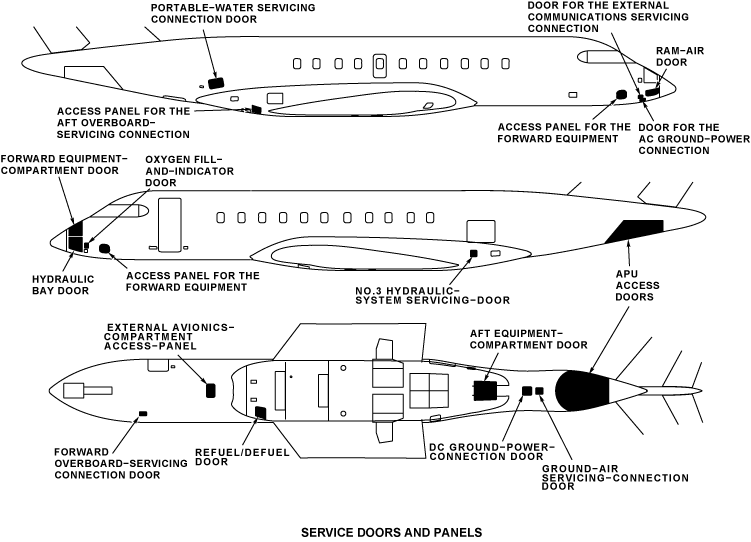

Overview
The service doors and panels give access to compartments that contain equipment for which maintenance or servicing is necessary.
05/24/16
Aft Equipment-Compartment Door
The aft equipment-compartment door is on the bottom of the aft fuselage, aft of the pressure bulkhead. It gives access to equipment that is installed in the aft fuselage compartment.
05/24/16
Forward Equipment-Compartment Doors
The two forward equipment-compartment doors are on the top half of the nose fuselage. The forward equipment-compartment doors give access to equipment that is installed in the nose fuselage compartment.
05/24/16
Auxiliary Power Unit (APU) Access Doors
The APU access doors are on the bottom of the empennage/tail structure, aft of the aft equipment-compartment door. The doors give access to the APU controls.
05/24/16
Service Doors
The service doors give access to servicing points on the aircraft.
05/24/16
Service Panels
The service panels give access to servicing points on the aircraft.
