Overview

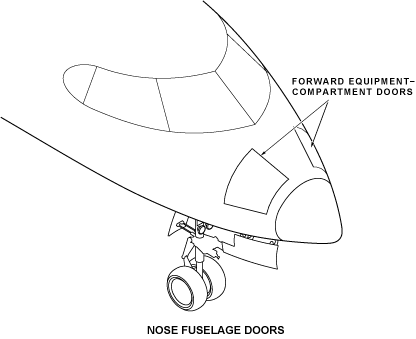

The nose fuselage has doors that provide access for maintenance and servicing of equipment.

off

off

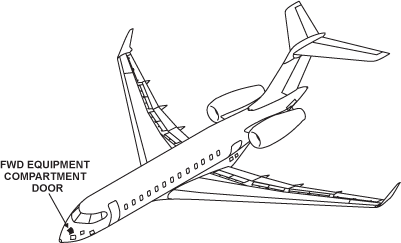

Forward Equipment Compartment Doors

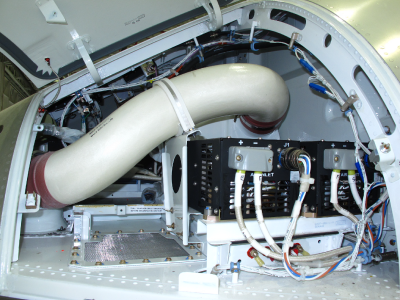

There are two forward equipment compartment doors, one on each side of the aircraft. The doors are installed on top of the nose fuselage, in front of the flight compartment. These doors attach to the fuselage by two hinges at the top of the doors. There are two quick-release latches on each door. A strut assembly attached to the structure adjacent to each door holds the door in the open position.

off

off

10/14/20

Component Location Index

Component Location Index
IDENT DESCRIPTION LOCATION IPC REF
     - FORWARD EQUIPMENT-COMPARTMENT DOORS ZONE(S) 211/212 52-42-01 [ GX ] [ GXRS ] [ G5000 ]
