05/27/16
Overview
On A/C Pre SB 700-1A11-34-005 for Global 5000, or on A/C Pre SB 700-34-037 for Global Express, or on A/C Pre SB 700-34-033 for Global XRS:
The fuselage aerodynamic fairings are the nose radome and the belly fairings. The nose radome and fairings at the wing-to-fuselage interface make the aircraft aerodynamic.
On A/C Post SB 700-1A11-34-005 for Global 5000, or on A/C Post SB 700-34-037 for Global Express, or on A/C Post SB 700-34-033 for Global XRS:
The fuselage aerodynamic fairings are the nose radome, the EVS sensor fairing and the belly fairings. The nose radome, the EVS sensor fairing and fairings at the wing-to-fuselage interface make the aircraft aerodynamic.
The radome is installed on the nose of the fuselage. The EVS sensor fairing is installed on the nose fuselage. The belly fairings are installed around the wing-to-fuselage interface.
05/27/16

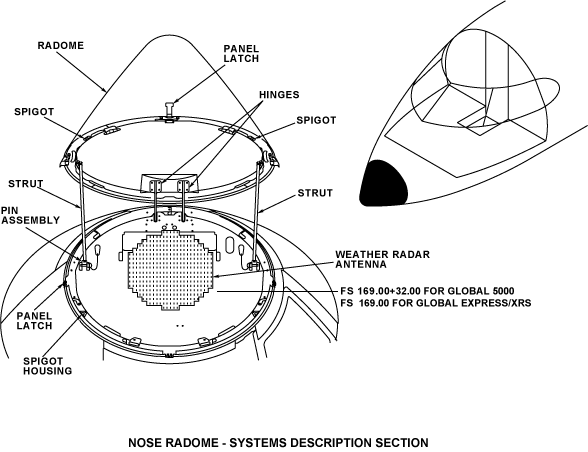

Nose Radome
The nose radome is a conical cover made from a composite material which is installed on the nose of the fuselage. It is an aerodynamic surface for the fuselage and is also a cover for electronic equipment.
05/27/16

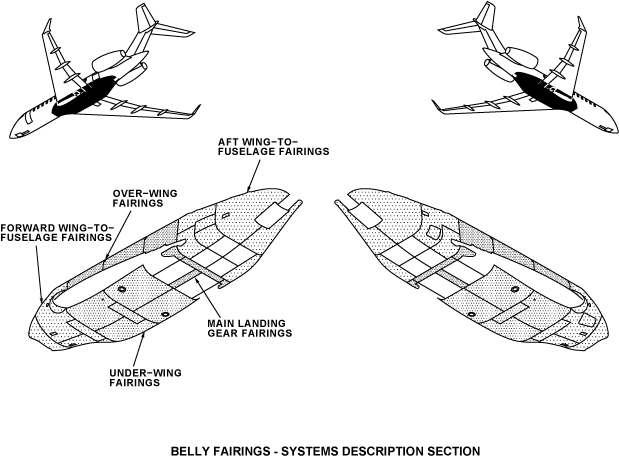

Belly Fairings
The belly fairings are found between FS483 and FS945 and are made of a composite material. There are 30 panels and 6 doors that you can remove to get access to equipment, components, and structures.
05/27/16

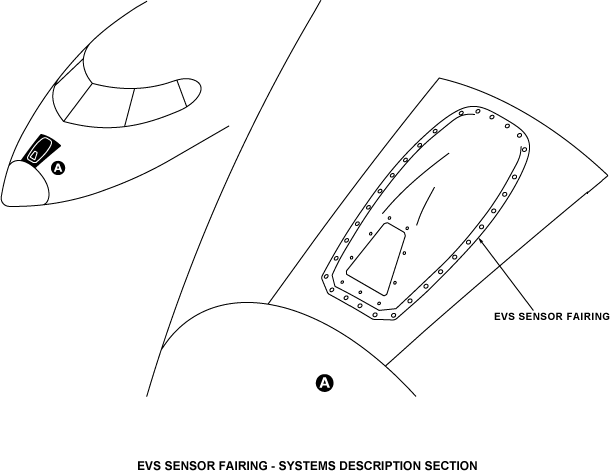

EVS Sensor Fairing
On A/C Post SB 700-34-037 for Global Express, or on A/C Post SB 700-34-033 for Global XRS:
The EVS sensor fairing is installed on the nose fuselage between FS169 and FS193 and between FS169+32.00 and FS193+32.00 for Global 5000 on A/C Post SB 700-1A11-34-005. The fairing is made of composite material. It is an aerodynamic surface covering the EVS sensor.
