Message Overview:

HYD PUMP 2B FAIL
(Advisory)

DDG Reference: None
Pilot Action (QRH): ADVISORY 9-2
System Description: 29-12-00
Schematic Diagram: 29-12-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 29-00-04 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Message Description:

DAU 3 is receiving an input that the Hydraulic Pressure Switch 2B is less than 1800 psi (low) with Hydraulic Pump Switch 2B selected to AUTO or ON.

NOTE: ACMP pressure switches close at 2400 psi (high) as pressure rises and opens at 1800 psi (low) as pressure decreases.

Possible Causes:

  • AC Power Center (ACPC) Secondary Logic Card (SLC) 2
  • AC Motor-Driven Pump (ACMP 2B)
  • Relay K17 in ACPC
  • Hydraulic Pressure Switch 2B
  • Low Hydraulic Fluid quantity in Hydraulic System Reservoir 2
  • AC Power Center (ACPC)
  • Data Acquisition Unit 3 (DAU 3)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Flight Operation Notifications Manual (FONM): None

Quick Links:

Quantity Check of the Hydraulic Reservoir Fluid AMM 12-12-00-610-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of AC Power Center (ACPC) L-Series Contactors AMM 24-51-13-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of AC Power Center (ACPC) L-Series Contactors AMM 24-51-13-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of ACPC AMM 24-51-00-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of ACPC AMM 24-51-00-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of AC Power Center (ACPC) Secondary Logic AMM 24-51-13-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of AC Power Center (ACPC) Secondary Logic AMM 24-51-13-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of No. 1 and No. 2 ACMP AMM 29-12-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of No. 1 and No. 2 ACMP AMM 29-12-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of Hydraulic Pressure Transducers AMM 29-31-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of Hydraulic Pressure Transducers AMM 29-31-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Pump Operational Inhibits FCOM 2-13-10-24 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair SPM 20-12-10 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

NOTE: Reference the Pump Operational Inhibits (Quick Links:) prior to beginning troubleshooting.

  1. Ensure No. 2 Hydraulic System is properly serviced.
  2. Operate Hydraulic Pump 1B and note Hydraulic System 1 pressure.

    1. If pump operates and pressure is above 2400 psi, interchange Hydraulic Pressure Switch 2B and 1B. If fault clears, do close out. If fault remains, go to step 7.
    2. If pump operates and pressure in below 2400 psi, replace ACMP 2B and do close out.
    3. If pump does not operate, continue with next step.

  3. Perform voltage check at ACMP 2B. Check for 115 VAC at connector B52P1 between pins A and E, pins B and E and pins C and E.

    1. If voltage is present, remove enough clamps to interchange ACMP 1B connector B51P1 and ACMP 2B connector B52P1. If issue follows, replace ACMP 2B and do close out.
    2. If voltage is not present, continue with next step.

  4. Interchange ACPC SLC AC-2 with SLC AC-3.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

    illu

  5. Interchange K17 relay with K20 relay in ACPC.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

    illu

  6. Perform wiring check between ACMP 2B, ACPC Relay K17, Hydraulic Pressure Switch 2B and DAU 3.

    1. If fault is found / repaired, do close out.
    2. If fault remains, continue with next step.

  7. Interchange DAU 3 with DAU 1.

    1. If fault is no longer present. Replace failed DAU. Do close out.
    2. If fault remains, continue with next step.

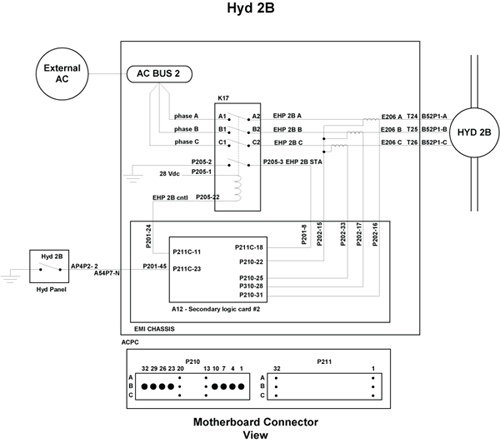

  8. Accomplish check of EMI filter as shown below.

    1. Remove ACPC Secondary Logic Card 2
    2. Measure the EMI Filter continuity from connector P210 pin 22 to aircraft structure.

      1. If reading is ground, replace the ACPC and do close out.
      2. If reading is open, continue with next step.

    3. Measure for open circuit between SLC 2, connector P210, pin 22 to pin 25, pin 28, and pin 31.

      1. If reading an open, replace the ACPC.

    illu

  9. Do close out.
