R BLEED FAULT
(Advisory)

There is a failure in the Right Bleed System.

• Right Bleed Leak Detection Loops
• Air Conditioning System Controller 2 (ACSC) (A88)
• Data Acquisition Units 3 (DAU) (A30)
• Data Acquisition Units 4 (DAU) (A31)
• Right Pressure Regulating Valve (PRV)
• Right High Pressure Valve (HPV)
• Right Bleed Pressure Transducer (BPT) (MT112)
• Right Intermediate Pressure Transducer (IPT)
• Bleed Management Controller 1 (BMC) (A69)
• Bleed Management Controller 2 (BMC) (A70)
• Associated Wiring

Advisory Wire/Service Bulletin:

• AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate
• AW700-36-0826 - Kidde Bleed Leak Detection Loops Notice of Escape
• SB 700-31-020 - Flight Data Recording (FDR) System – Installation Of The Force Transducer Units (FTU) And Activation Of The Crew Force Measuring System (CFMS) 2002

Full Throttle Blog/Forum Articles/Infoservice/Newsletter:

• Tech Corner Article - Hot weather effects on the bleed air detection system

Flight Operation Notifications Manual (FONM):

• [ G5000 ]  [ Global Express ]  [ Global XRS ] FON 01-10 ENVR-001 [L BLEED FAULT] (Advisory/Cyan) or [R BLEED FAULT] (Advisory/Cyan) On Ground

NOTES:

• R BLEED FAULT may be posted if the aircraft is operated outside the AFM 02-08-1 and FCOM1 07-06 Hot Weather Operation limitations.
• Auxiliary Power Unit (APU) should not be used for Bleed Extraction to operate air conditioning above 45 C OAT.
• To avoid the display of any Bleed related CAS nuisance message after replacement of BMC due to internal failure, follow AW700-36-0365 instructions
• Proceed to a QAR (if available) download of the last three flights (Aircraft meeting FAR part 135.172):
  -BMC NVM download
  -IAC CAS messages download

1. Inspect the Bleed synoptic page.

   1. If the R PRSOV is not in the commanded position or shows amber continue with next step.
   2. If R PRSOV position and status is good, go to step 3.

2. Inspect the R PRSOV installation. Refer to AMM TASK 36-11-09-400-801.

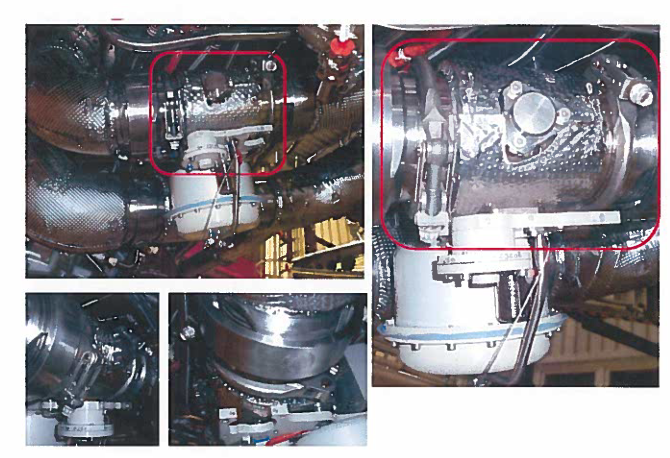

   NOTE: To prevent distortion of the valve body during installation follow the instructions regarding the orientation of the couplings in AMM task "36-11-09-400-801 - Installation of the Bleed-Pressure Regulating-and-Shutoff Valve".

3. Select displayed message from the menu below:
   Select an Item3615523BMC - [BMC1] RIGHT BLEED LEAK D LOOP /WRG3616319BMC - RIGHT BLEED MODUL & SOV CMD /R PRV3616320BMC - RIGHT HI PRESS BLEED SOV CMD /R HPV3616321BMC - BMC2 [NO DATA] /DAU4 [CH B] /WRG3616322BMC - BMC2 [NO DATA] /DAU4 [CH A] /WRG3616323BMC - BMC2 [NO DATA] /DAU3 [CH B] /WRG3616324BMC - BMC2 [NO DATA] /DAU3 [CH A] /WRG3616325BMC - BMC2 [NO DATA] /BMC1 [CH B] /WRG3616326BMC - BMC2 [NO DATA] /BMC1 [CH A] /WRG3616327BMC - BMC2 [NO DATA] /ACSC2 [CH B] /WRG3616328BMC - BMC2 [NO DATA] /ACSC2 [CH A] /WRG3616329BMC - BLEED MANAGEMENT CONTROLLER 23616419BMC - R OUTBD/INBD WAIT SNSR INSTALLATION3616427BMC - RIGHT BLEED PRESSURE XDCR /WRG3616428BMC - RIGHT INTMD PRESS XDCR /WRG /SENS L3616429BMC - RIGHT PRESS XDCR POWER SUPPLY /WRG3616523BMC - [BMC2] RIGHT BLEED LEAK D LOOP /WRG
4. Do close out.
