Message Overview:

APU REVERSE FLOW
(Caution)

DDG Reference: 49-60-00
Pilot Action (QRH): ABNORM 4-5
System Description: 49-60-00
Schematic Diagram: 49-61-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 49-61-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

A reverse flow condition has occurred during flight. A reverse flow condition occurs when the APU inlet temperature is more than 350°F (176.7°C) for five seconds.

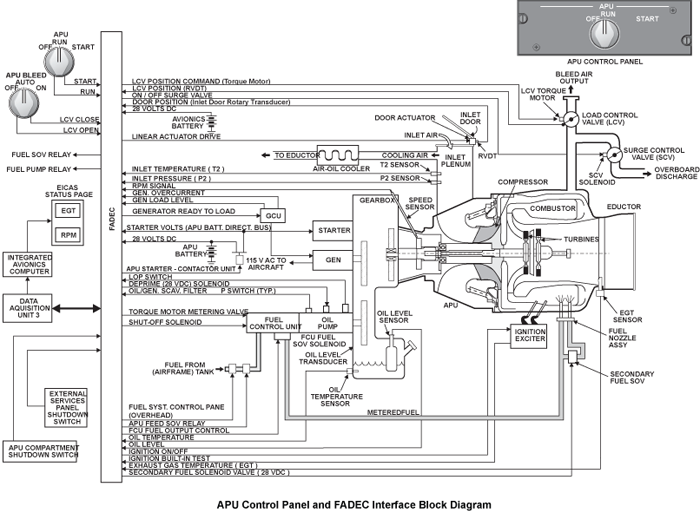

illu

Possible Causes:

  • Load Control Valve
  • Bleed Air Check Valve
  • Engine Branched Wiring Harness
  • Full Authority Digital Engine Controller (FADEC)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick links:

Removal of the Load Control Valve AMM 49-52-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Load Control Valve AMM 49-52-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed-Air check valve AMM 49-52-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed-Air check valve AMM 49-52-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Full Authority Digital Engine Controller (FADEC) AMM 49-61-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Full Authority Digital Engine Controller (FADEC) AMM 49-61-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
APU Electrical Harness Wiring Diagram 49-12-00 WM 49-12-00 [ Global Express ]
Wire Repair SPM 20-12-10 [ Global Express ]  [ G5000 ]  [Global XRS ]

Troubleshooting Recommendations:

  1. Examine the engine branched wiring-harness for bare wiring, kinks, worn areas and other damage.
  2. Examine the APU and the area around the APU for signs of fire.
  3. Swap or replace the bleed-air check valve.
  4. Swap or replace the Load Control valve.
  5. Swap or replace the FADEC.
  6. Do close out.
