Message Overview:

APU OIL LO QTY
(Caution)

DDG Reference: 49-90-01
Pilot Action (QRH): ADVISORY 4-2
System Description: 49-90-00

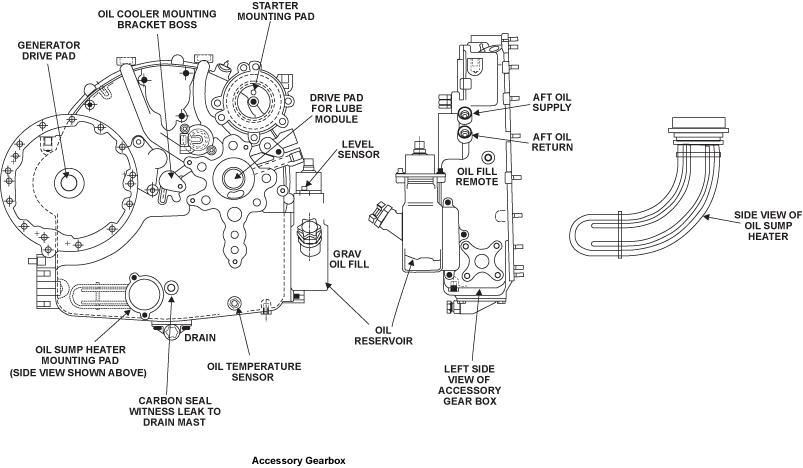

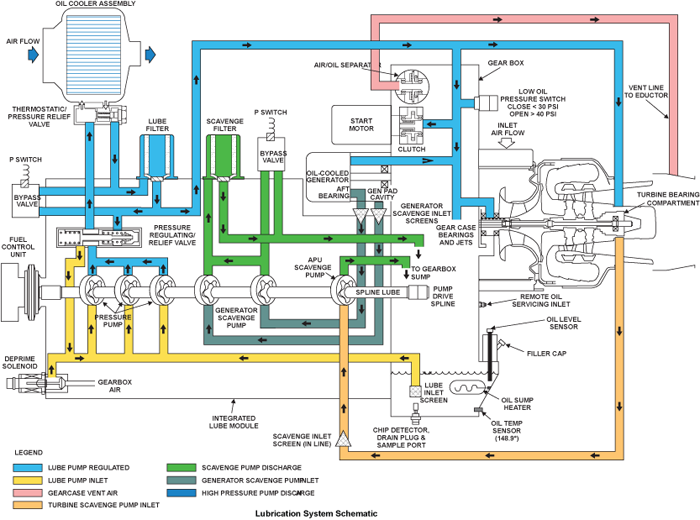

Schematic Diagram: 49-61-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 49-61-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Aircraft is on ground and the APU oil quantity probe is sensing less than 3.5 qt (3.3 L) as reported by the APU FADEC.

Possible Causes:

  • Oil Level Sensor (MT2)
  • Auxiliary Power Unit (APU) Full-Authority Digital Engine-Controller (FADEC) (A108)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Quantity Check of the Oil Supply in the APU AMM 12-14-09-610-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Servicing of the APU Oil Supply AMM 12-14-09-612-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Oil Level Sensor AMM 49-90-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Oil Level Sensor AMM 49-90-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Full Authority Digital Engine Controller (FADEC) AMM 49-61-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Full Authority Digital Engine Controller (FADEC) AMM 49-61-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Access to Active Faults AMM 45-45-00-970-802 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair SPM 20-12-10 [ Global Express ]  [ G5000 ]  [Global XRS ]

Troubleshooting Recommendations:

  1. Check oil quantity at APU.

    1. If low, check for leaks, investigate low quantity. Go to step 6.
    2. If quantity is good continue.

  2. Check CAIMS for any additional APU messages.

    1. If additional messages found trouble shoot accordingly.
    2. If no additional messages continue.

  3. Perform wiring check between APU FADEC and the oil quantity probe (MT2P1).

    1. If wiring fault found. Repair wiring go to step 6.
    2. If wiring checks good continue.

  4. Replace oil quantity probe.

    1. If fault clears go to step 6.
    2. If fault remains continue.

  5. Replace APU FADEC.
  6. Do close out.
