Message Overview:

Message Name:

GEN1/GCU1 OIL PRESS SW/SENSE FAULT

Message Code:

2421228LPS

Associated CAS:

None

Reporting LRU: Generator Control Unit (GCU) 1
System Description: 24-21-00
Schematic Diagram: 24-21-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 24-21-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Message Description:

Generator Control Unit (GCU) 1 has detected a Variable Frequency Generator (VFG) 1 Oil Pressure Switch/sensing fault.

Possible Causes:

  • Generator Control Unit (GCU) 1 (A56)
  • Generator Oil Pressure Switch
  • Variable Frequency Generator (VFG) 1 (G1)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Notice To Operators (NTO): None

Flight Operation Notifications Manual (FONM): None

A GCU patch cable (GSE REF # 24X-24-02) can be used to interchange GCUs 1, 4 and 5 into position 2 or 3 (for troubleshooting only). The GCU NVMs can only be downloaded at position #2 or #3.

gcu_patch_cable

Quick Links:

Removal of the Generator Control Units (GCU) AMM 24-24-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Generator Control Units (GCU) AMM 24-24-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Oil Pressure Switch AMM 24-25-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Oil Pressure Switch AMM 24-25-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Interchange GCU 1 with GCU 2. Is the fault still present?

    1. If YES, continue with next step.
    2. If NO, replace GCU 1 and do close out.

  2. Disconnect VFG 1 connector G1P2 and GCU 1 connector A56P2. Do a continuity check as follows:

    From To Result
    A56P2-10 Ground

    1. If there is continuity, repair defective wiring as required and do close out.
    2. If there is no continuity, continue with next step.

  3. Do a continuity check as follows:

    From To Result
    A56P2-10 G1P2-A
    G1P2-B Ground

    1. If there is continuity, continue with next step.
    2. If there is no continuity, repair defective wiring as required and do close out.

  4. Interchange the Generator oil pressure switch with another VFG. Is the fault still present?

    1. If YES, continue with next step.
    2. If NO, replace Generator oil pressure switch and do close out.

  5. Replace VFG 1.
  6. Do close out.

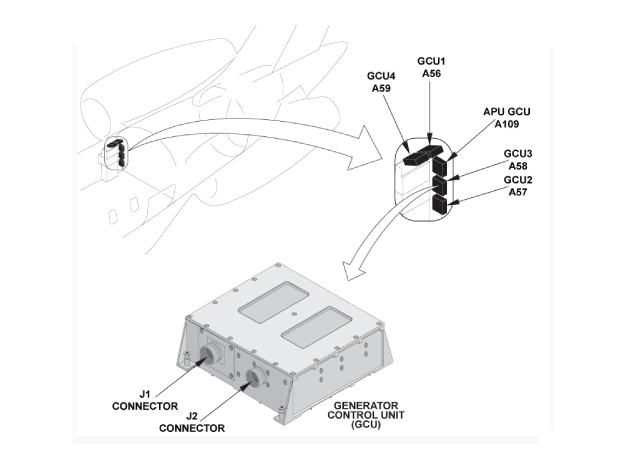

gcu_1
