Message Overview:

Message Name:

ACPC RS422 RECEIVE (GCU4) FAULT

Message Code:

2424176LPS

Associated CAS:

ELEC SYS FAULT
(Advisory)

Reporting LRU: AC Power Center (ACPC)
System Description: 24-21-00
Schematic Diagram: 24-21-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 24-21-04 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Message Description:

AC Power Center (ACPC) senses a RS422 communication failure from the Generator Control Unit (GCU) 4.

Possible Causes:

  • AC Power Center (ACPC) (A54)
  • Generator Control Unit (GCU) 4 (A59)
  • Primary Logic Card (PLC) 1
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Notice To Operators (NTO): None

Flight Operation Notifications Manual (FONM): None

Quick Links:

Removal of the Generator Control Units (GCU) AMM 24-24-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Generator Control Units (GCU) AMM 24-24-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) AMM 24-51-00-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) AMM 24-51-00-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) Primary Logic AMM 24-51-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) Primary Logic AMM 24-51-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]
AC Power Center Component Maintenance Manual CMM 24-51-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

CAUTION: To prevent damage to the ACPC Mother Board connectors, ensure that the jumper wire pins Outside Diameter (OD) does not exceed 0.025 inch.

  1. Interchange GCU 4 with GCU 3.

    1. If system checks are good, replace GCU 4 and do close out.
    2. If fault remains, continue with next step.

  2. Interchange ACPC Primary Logic Card 1 with ACPC Primary Logic card 2.

    1. If system checks are good, replace ACPC Primary Logic card 1 and do close out.
    2. If fault remains, continue with next step.

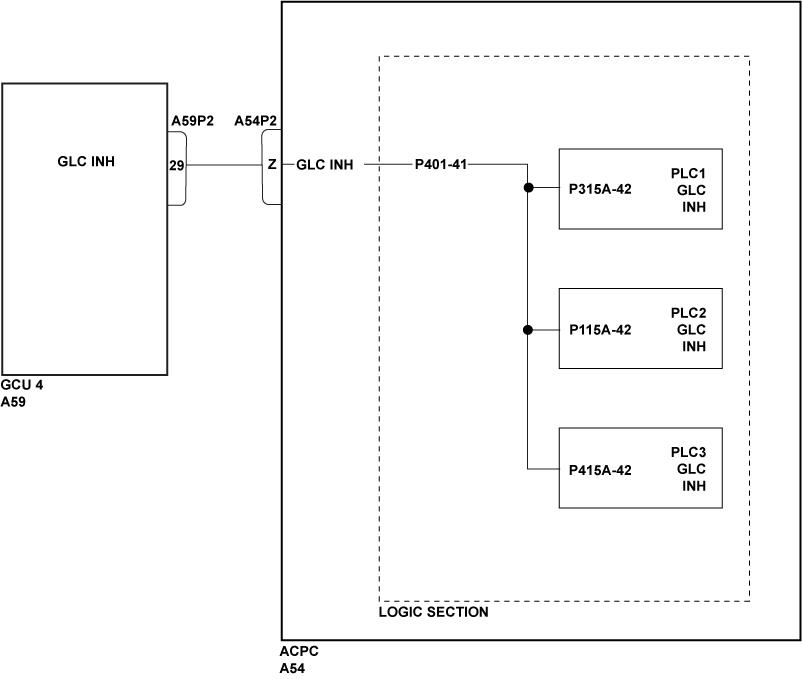

  3. Perform wiring check between GCU 4, ACPC and P401.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.
      NOTE: Disconnect GCU 4 connector and remove ACPC PLC 1 to measure for short/open circuit.

  4. Replace ACPC.
  5. Do close out.
