07/01/19
Message Overview:
Fault Message:
EMS CDU2A RX DAU2A ARINC FAULT/WRG
Fault Code:
2470402CDU
Associated CAS:
| Reporting LRU: | Electrical Management System Control Display Unit (EMS CDU) |
| System Description: | 24-70-00 |
| Schematic Diagram: | 24-70-00 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring Diagram: | 24-70-02 [ Global Express ] [ G5000 ] [ Global XRS ] 24-70-04 [ Global Express ] [ G5000 ] [ Global XRS ] 31-42-06 [ Global Express ] [ G5000 ] [ Global XRS ] |
Fault Description:

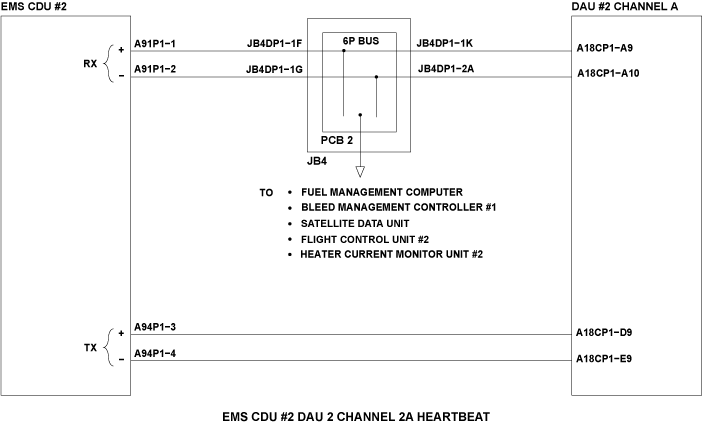

Electrical Management System Control and Display Unit (EMS CDU) 2 has detected a communication failure from the Data Acquisition Unit (DAU) 2 channel A.
Possible Causes:
- Electrical Management System Control and Display Unit (EMS CDU) 2 (A91)
- Junction Box (JB4) PCB2
- Data Acquisition Unit (DAU) 2 (A18)
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin: None
Forum Articles/Infoservice/Newsletter: None
If you notice CAIMS messages related to the following list of systems which communicates on the DAU 2A General Purpose Bus, troubleshoot the DAU 2 and Junction Box #4 card #2.
- EMS CDU 2
- Flight Control Unit 2
- Fuel Management Computer
- Heater Current Monitor Unit 2
- Bleed Management Controller 1
- Satellite data unit
Make sure the Junction Box #4 is racked properly. Field experience revealed many cases of Junctions Boxes not installed properly.
Quick Links:
| Removal of the Junction Box JB4 | AMM 24-00-05-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Junction Box JB4 | AMM 24-00-05-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Junction Box JB4 Circuit-Cards | AMM 24-00-06-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Junction Box JB4 Circuit-Cards | AMM 24-00-06-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Electrical Management System Control-and-Display Units (EMS CDU) |
AMM 24-70-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Electrical Management System Control-and-Display Units (EMS CDU) |
AMM 24-70-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Data Acquisition Units (DAU) | AMM 31-42-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Data Acquisition Units (DAU) | AMM 31-42-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
Troubleshooting Recommendations:
- Swap EMS CDU 2 with EMS CDU 1.
- If system checks are good, replace EMS CDU 2 and do close out.
- If fault remains, continue with next step.
- Swap DAU 2 with DAU 1.
- If system checks are good, replace DAU 2 and do close out.
- If fault remains, continue with next step.
- Perform wiring checks between the EMS CDU 2, JB4 and DAU 2.
- If wiring checks are not good, repair defective wiring as required and do close out.
- If wiring checks are good, continue with next step.
- Replace PCB2/JB4.
- Do close out.
