Message Overview:

Fault Message:

ACPC PRIMARY LOGIC #1-A18/RS422

Fault Code:

2480900ACP

Associated CAS:

None

Reporting LRU: AC Power Center (ACPC)
System Description: 24-21-00
Schematic Diagram: 24-21-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 24-21-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

AC Power Center (ACPC) Primary Logic Card 1 (PLC1) has detected a problem on the RS422 communication bus between itself and Generator Control Unit (GCU) 4.

Possible Causes:

  • Generator Control Unit (GCU) 4 (A59)
  • AC Power Center Primary Logic Card (PLC) 1
  • AC Power Center (ACPC) (A54)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Generator Control Units (GCU) AMM 24-24-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Generator Control Units (GCU) AMM 24-24-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) AMM 24-51-00-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) AMM 24-51-00-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the AC Power Center (ACPC) Primary Logic AMM 24-51-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the AC Power Center (ACPC) Primary Logic AMM 24-51-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap GCU 4 with GCU 1, 2, 3 or APU GCU. Is the fault resolved?

    1. If YES, replace GCU 4 and do close out.
    2. If NO, continue with next step.

  2. Access ACPC logic assembly. Swap PLC 1 with PLC 2. Is the fault still present?

    1. If NO, replace PLC 1 and do close out.
    2. If YES, continue with next step.

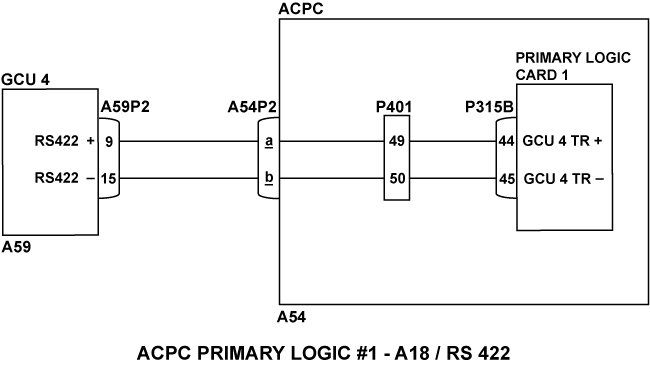

  3. Disconnect GCU 4 connector A59P2. Remove PLC 1. Perform a continuity check as follows:

    From To Result
    A59P2-9 Ground
    A59P2-15 Ground

    1. If there is continuity, go to step 5.
    2. If there is no continuity, continue with next step.

  4. Perform a continuity check as follows:

    From To Result
    A59P2-9 P315B-44
    A59P2-15 P315B-45

    1. If there is continuity, replace PLC 1 and do close out.
    2. If there is no continuity, go to step 6.

  5. Disconnect ACPC connector A54P2. Perform a continuity check as follows:

    From To Result
    A54P2-a Ground
    A54P2-b Ground

    1. If there is continuity, repair defective wiring as required and do close out.
    2. If there is no continuity, go to step 7.

  6. Disconnect ACPC connector A54P2. Perform a continuity check as follows:

    From To Result
    A59P2-9 A54P2-a
    A59P2-15 A54P2-b

    1. If there is no continuity, repair defective wiring as required and do close out.
    2. If there is continuity, continue with next step.

  7. Replace ACPC.
  8. Do close out.
