Message Overview:

Fault Message:

PITCH FEEL ACTR #1 POT/WRG FAULT

Fault Code:

27653191SX

Associated CAS:

PITCH FEEL FAULT
(Advisory)

SPLRS STAB BIT
(Advisory)

Reporting LRU: Flight Control Unit (FCU) 1
System Description: 27-33-00
Schematic Diagram: 27-33-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 27-33-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

There is a problem with a potentiometer in a Pitch Feel Actuator 1. The potentiometer is possibly invalid or reporting a mechanical jam.

Possible Causes:

  • Pitch Feel Actuator 1 (A77)
  • Flight Control Unit (FCU) 1 (A65)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

This fault may sometime be cleared by performing the flight control system reset procedure. If the message comes back more then once within 10 flight legs, troubleshooting is required.

NOTE: If FCUs are swapped/replaced, ensure proper system tests are carried out to clear latched faults retained in the FCU prior to swap.

The pitch feel actuator information can be found in the CAIMS system diagnostic:

  1. SYSTEM DIAG
  2. 27-00 FLIGHT CONTROLS
  3. FLIGHT CONTROL UNIT #1
  4. LRU TEST

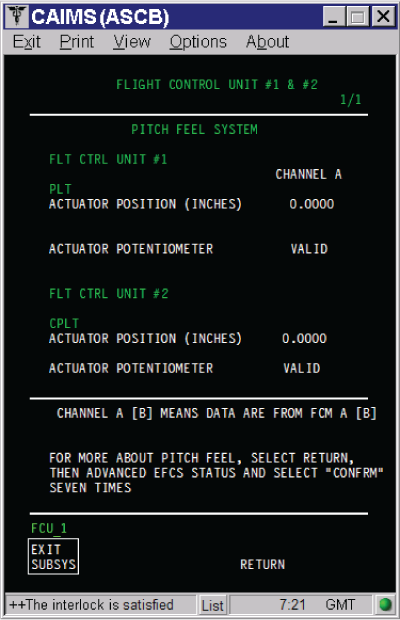

  5. DISPLAY PITCH FEEL DATA
  6. CONFIRM

The Pitch feel Actuator can also be simulated on CAIMS in case the fault cleared:

  1. SYSTEM DIAG
  2. 27-00 FLIGHT CONTROLS
  3. FLIGHT CONTROL UNIT #1
  4. LRU TEST

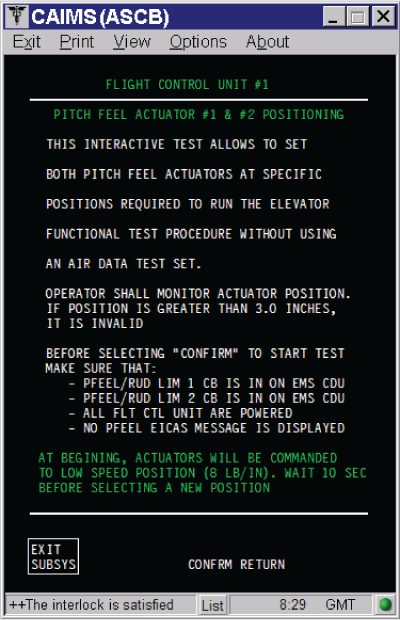

  5. PITCH FEEL ACTR PLT/CPLT POSITIONING

Quick Links:

Removal of the Pitch Feel Actuators AMM 27-33-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Pitch Feel Actuators AMM 27-33-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Flight-Control Units AMM 27-61-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Flight-Control Units AMM 27-61-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Access to System Diagnostics AMM 45-45-00-970-804 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap FCU 1 with FCU 2 and clear FCU latched faults. Is the fault still present?

    1. If YES, continue with next step.
    2. If NO, replace defective FCU.

  2. Perform wiring checks between FCU 1 and Pitch Feel Actuator 1.

    1. If wiring defects are found, repair defective wiring as required and do close out.
    2. If no defects are found, continue with next step.

  3. Replace Pitch Feel Actuator 1.
  4. Do close out.
