07/11/19

Message Overview:

Fault Message:

H STAB MTR DR UNIT [CH 2] OVER TEMP

Fault Code:

27662272SX

Associated CAS:

STAB CH2 FAIL
(Advisory)

Reporting LRU: Motor Drive Unit (MDU)
System Description: 27-40-00
Schematic Diagram: 27-41-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: None

Fault Description:

There is a problem with the Motor Drive Unit (MDU).

Possible Causes:

  • Pitch Trim Actuator Motor Drive Unit (A184)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

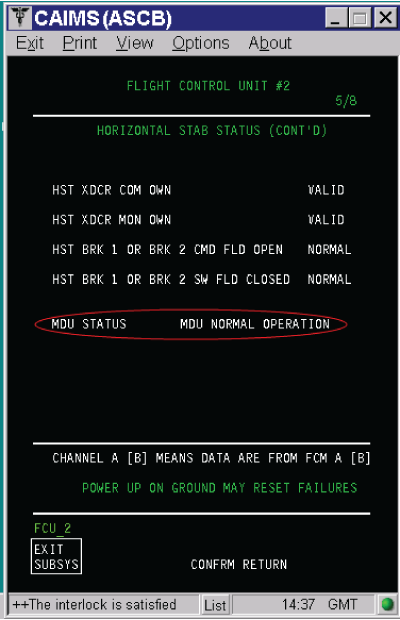

The MDU transmits this information to the FCU#1 through a 3 bits binary code. This information can be retrieved in the CAIMS System diagnostic:

  1. SYSTEM DIAG
  2. 27-00 FLIGHT CONTROLS
  3. FLIGHT CONTROL UNIT #2
  4. LRU TEST
  5. DISPLAY ADVANCED EFCS DATA
  6. Go to page 5 of 8

This fault may sometime be cleared by performing the flight control system reset procedure. If the message comes back more then once within 10 flight legs, replace the MDU.

Quick Links:

Removal of the Pitch-Trim Actuator-Motor Drive-Unit AMM 27-41-17-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Pitch-Trim Actuator-Motor Drive-Unit AMM 27-41-17-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Replace Motor Drive Unit.
  2. Do close out.
