07/22/19

Message Overview:

Fault Message:

AUTOPILOT2 INTERFACE / WRG

Fault Code:

3030540HBM

Associated CAS:

None

Reporting LRU: Heater/Brake-Temperature Monitoring Unit (HBMU) 2
System Description: 30-31-00
Schematic Diagram: 30-31-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 30-31-03 [ Global Express ]  [ G5000 ]  [ Global XRS ]
31-42-06 [ Global Express ]  [ G5000 ]  [ Global XRS ]
32-11-03 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

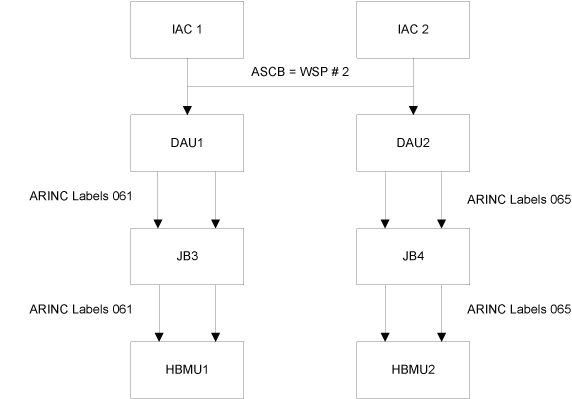

Heater/Brake-Temperature Monitoring Unit (HBMU) 2 does not received Label 061 (Yaw Damper 2 Actuator Status) from Integrated Avionics Computer (IAC) 2 or the Labels is invalid.

Possible Causes:

  • Data Acquisition Unit (DAU) 2 (A18)
  • Integrated Avionics Computer (IAC) 2 (A10)
  • Heater/Brake-Temperature Monitoring Unit (HMBU) 2 (A93)
  • Junction Box 4 (JB4)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Junction Box JB4 AMM 24-00-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB4 AMM 24-00-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Heater/Brake-Temperature Monitoring Unit (HBMU) AMM 30-31-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Heater/Brake-Temperature Monitoring Unit (HBMU) AMM 30-31-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Integrated Avionics Computers (IAC) AMM 31-41-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Integrated Avionics Computers (IAC) AMM 31-41-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Look at the CAIMS stored and active faults. Make sure there is no fault present for DAU 2 and IAC 2.
  2. Using the Bus Reader, read WSP 2 from IAC 2 (AFCS). Make sure the WSP is present and valid.
  3. Swap DAU 2 with DAU 4.

    1. If system checks are good, replace DAU 2 and do close out.
    2. If fault remains, continue with next step.

  4. Swap IAC 2 with IAC 1.

    1. If system checks are good, replace IAC 2 and do close out.
    2. If fault remains, continue with next step.

  5. Swap HBMU 2 with HBMU 1.

    1. If system checks are good, replace HBMU 2 and do close out.
    2. If fault remains, continue with next step.

  6. Perform wiring checks of ARINC between DAU 2, JB4 and HBMU 2.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  7. Replace JB4.
  8. Do close out.
