Message Overview:
Fault Message:
L WSHLD TEMP CNTRL /WRG/DAU-1A
Fault Code:
3040021IN
Associated CAS:
| Reporting LRU: | Left Windshield Temperature Controller (WTC) |
| System Description: | 30-41-00 |
| Schematic Diagram: | 30-41-00 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wiring Diagram: | 30-41-01 [ Global Express ] [ G5000 ] [ Global XRS ] 31-42-05 [ Global Express ] [ G5000 ] [ Global XRS ] |
Fault Description:
The Left Left Windshield Temperature Controller (WTC) does not receive the ARINC 429 data from Data Acquisition Unit (DAU) 1.
Possible Causes:
- Data Acquisition Unit (DAU) 1 (A17)
- Left Windshield Temperature Controller (WTC) (A164)
- Associated Wiring
Troubleshooting Tips:
Advisory Wire/Service Bulletin:
- AW700-30-0463 - No Fault Found (NFF) initiative - Windshield Temperature Controller (WTC)
- Windshield Troubleshooting Report to help with windshield temperature controller NFF
Forum Articles/Infoservice/Newsletter: None

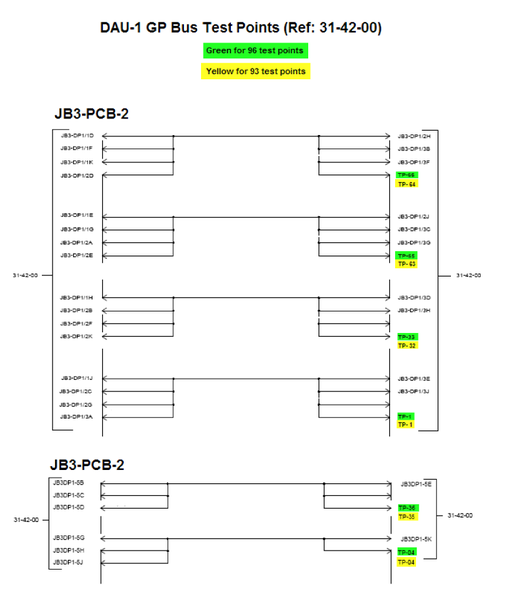

NOTE: Test Points are available in the Junction Box to monitor the different signals if needed.
Quick Links:
| Removal of the Windshield and Side Window Temperature-Controller | AMM 30-41-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Windshield and Side Window Temperature-Controller | AMM 30-41-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Removal of the Data Acquisition Units (DAU) | AMM 31-42-01-000-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Installation of the Data Acquisition Units (DAU) | AMM 31-42-01-400-801 [ Global Express ] [ G5000 ] [ Global XRS ] |
| Wire Repair - Maintenance Practices - ALL | SPM 20-12-10-02 [ Global Express ] [ G5000 ] [ Global XRS ] |
Troubleshooting Recommendations:
- Perform wiring checks between DAU 1 and the left WTC.
- If wiring defects are found, repair defective wiring as required and do close out.
- If no defects are found, continue with next step.
- Swap DAU 1 with DAU 2. Is the fault still present?
- If YES, continue with next step.
- If NO, replace defective DAU and do close out.
- Swap the left WTC with the right WTC to confirm faulty unit and do close out.
- Do close out.
