Message Overview:

Fault Message:

SIDE BRACE CONTROL-VALVE/WRG (OPEN)

Fault Code:

3230255EL

Associated CAS:

GEAR SYS FAIL
(Caution)

Reporting LRU: Landing Gear Electronic Control Unit (LG ECU)
System Description: 32-11-00
Schematic Diagram: 32-31-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 32-31-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Landing Gear Electronic Control Unit (LG ECU) has detected a failure with the Side Brace Control Valve.

Possible Causes:

  • Landing Gear Electronic Control Unit (LG ECU) (A52)
  • Side Brace Control Valve (L15)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Operational Test of the Extension and Retraction System AMM 32-30-00-710-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Landing-Gear Electronic Control Unit (LG ECU) AMM 32-31-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Operational Test of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-710-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Side Brace Control-Valve AMM 32-31-21-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Side Brace Control-Valve AMM 32-31-21-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Perform wiring checks of the Side Brace Control Valve OPEN Command wires between the LGECU connector A52BP1 and the Landing Gear Selector Valve including the ground.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

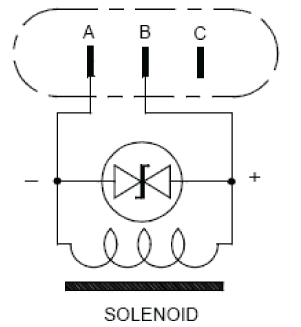

  2. Measure for resistance of Side Brace Control−Valve Solenoid resistance. Resistance must be between 57 and 65 Ohms at 68°F (20°C).

    1. If resistance out of range, go to step 4.
    2. If resistance within range, continue with next step.

  3. Re-rack LGECU.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  4. Replace Side Brace Control−Valve.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  5. Replace LGECU.
  6. Do close out.
