Message Overview:

Fault Message:

LDG GR SELECTOR VALVE #2/WRG (UP)

Fault Code:

3230262EL

Associated CAS:

GEAR SYS FAIL
(Caution)

Reporting LRU: Landing Gear Electronic Control Unit (LG ECU)
System Description: 32-11-00
Schematic Diagram: 32-31-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 32-31-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Landing Gear Electronic Control Unit (LG ECU) has detected a failure with the Landing Gear Selector Valve 2 UP command signal going to the valve.

Possible Causes:

  • Landing Gear Electronic Control Unit (LG ECU) (A52)
  • Landing Gear Selector Valve System 2 (L49)
  • Landing Gear Control Handle A2 (S3)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

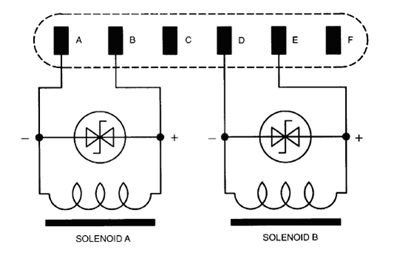

  1. If selector valve has been cold soaked check L49P1 pins A and B for open circuit on "A" Solenoid.
  2. Check Terminal Block TM7 for Loose connections.

Quick Links:

Functional Test of the Extension and Retraction System AMM 32-30-00-720-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Landing-Gear Control Handle AMM 32-31-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Landing-Gear Control Handle AMM 32-31-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the No. 2 System Landing-Gear Selector-Valve AMM 32-31-13-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the No. 2 System Landing-Gear Selector-Valve AMM 32-31-13-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the No. 3 System Landing-Gear Selector-Valve AMM 32-31-15-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the No. 3 System Landing-Gear Selector-Valve AMM 32-31-15-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Landing-Gear Door Selector-Valve AMM 32-31-17-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Landing-Gear Door Selector-Valve AMM 32-31-17-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Re-rack LGECU.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  2. Measure for resistance of Landing Gear Selector Valve 2 Solenoid A. Resistance must be between 57 and 65 Ohms at 68°F (20°C).

    1. If resistance out of range, go to step 4.
    2. If resistance within range, continue with next step.

  3. Perform wiring checks between LGECU, landing gear selector valve 2 (solenoid A-UP command), and landing gear control handle.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  4. Swap Landing Gear Selector Valve 2 with Landing Gear Selector Valve 3.

    1. If system checks are good, replace Landing Gear Selector Valve 2 and do close out.
    2. If fault remains, continue with next step.

  5. Replace LGECU.
  6. Do close out.
