Message Overview:

Fault Message:

ARINC BUS MONITOR (REGULATION)

Fault Code:

3000140IN

Associated CAS:

None

Reporting LRU: Enhanced Vision System Heater Controller (EVSHC)
System Description: 34-33-00
Schematic Diagram: 34-41-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 34-33-03 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The Enhanced Vision System Heater Controller (EVSHC) does not receive either one of the ARINC labels 211 (TAT), 203 (Alt) or 040 (WOW).

Possible Causes:

  • Data Acquisition Unit (DAU) 2 (A18)
  • Data Acquisition Unit (DAU) 3 (A30)
  • Data Acquisition Unit (DAU) 4 (A31)
  • Landing Gear Electronic Control Unit (LGECU) (A52)
  • Enhanced Vision System Heater Controller (EVSHC) (A315)
  • Micro Air Data Computer (MADC) 1 (A27)
  • Micro Air Data Computer (MADC) 2 (A28)
  • Micro Air Data Computer (MADC) 3 (A29)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Removal of the Data Acquisition Units (DAU) AMM 31-42-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Data Acquisition Units (DAU) AMM 31-42-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Landing-Gear Electronic Control-Unit (LG ECU) AMM 32-31-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Micro Air-Data Computers AMM 34-11-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Micro Air-Data Computers AMM 34-11-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Enhanced Vision System (EVS)
Heater Controller		 AMM 34-33-09-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Enhanced Vision System (EVS)
Heater Controller		 AMM 34-33-09-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]

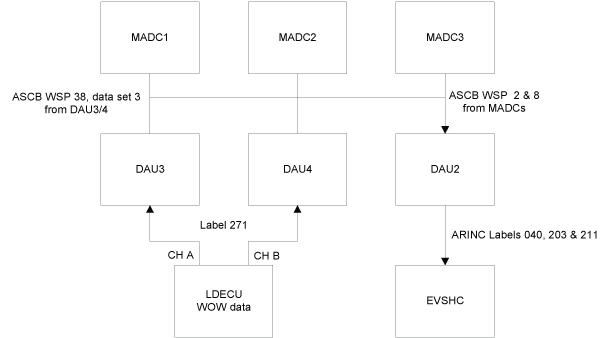

Troubleshooting Recommendations:

  1. Using the Bus Reader, read label 040, 203 and 211 from DAU 2. Make sure the labels are present and valid.

    1. If all three labels are present, then replace EVSHC and do close out.
    2. If all three labels are not present, continue with next step.

  2. Using the Bus Reader, read label 271 coming out of the LGECU Ch A. Make sure the labels are present and valid.

    1. If the label(s) is missing or invalid, replace LGECU and do close out.
    2. If the label(s) is valid, continue with next step.

  3. Using the Bus Reader, read WSP 38 Data set 3 from DAU 3 and DAU 4. Make sure the WSP are present and valid.

    1. If the WSP is missing or invalid, replace defective DAU and do close out.
    2. If the WSP is valid, continue with next step.

  4. Using the Bus Reader, read WSP 8 and WSP 2 from MADCs. Make sure the WSPs are present and valid.

    1. If the WSP is valid on one of the MADCs, do close out.
    2. If the WSP is missing or invalid on one of the MADCs, continue with next step.

  5. Replace defective MADC.
  6. Do close out.
