09/07/19

Message Overview:

Fault Message:

LEFT BLEED PRESSURE XDCR /WRG

Fault Code:

3615427BMC

Associated CAS:

L PACK AUTO FAIL
(Caution)

L BLEED FAULT
(Advisory)

Reporting LRU: Bleed Management Controller (BMC) 1
System Description: 36-11-00
Schematic Diagram: 36-11-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 30-11-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]
36-11-03 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The Left Bleed Pressure Transducer (BPT) is not reporting a correct pressure. Inhibited during Take-off and Landing.

Possible Causes:

  • Left Bleed Pressure Transducer (BPT) (MT96)
  • Junction Box 3 (JB3)
  • Bleed Management Controller (BMC) 1 (A69)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate

Forum Articles/Infoservice/Newsletter:

  • Forum Article 2011-VOL 8 issue 23 - Bleed Management Controller (BMC) Top 10 No Fault Found (NFF) vs. Reliability Improvement Modification Program (RIMP) implementation
  • Questionnaire for replacing the BMC. Follow instructions using this (Fill out form)
    NOTE 1: Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.
    NOTE 2: Before removing JB3, replace PCB2 Circuit Card if available.
  • Bleed Pressure can be monitored on the Bleed Synoptic page

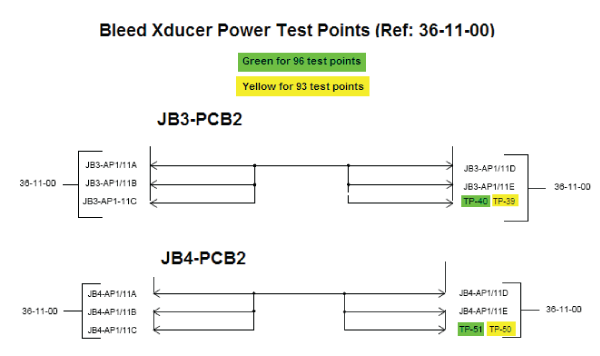

  • Test Points are available in the Junction Box to monitor the different signals if needed

Quick Links:

Removal of the Junction Box JB3 AMM 24-00-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Junction Box JB3 AMM 24-00-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Secondary-Power Distribution Assemblies AMM 24-62-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Secondary-Power Distribution Assemblies AMM 24-62-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Pressure Transducer AMM 36-11-25-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Pressure Transducer AMM 36-11-25-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Management Controller AMM 36-11-33-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Management Controller AMM 36-11-33-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap BPT 1 with BTP 2.

    1. If system checks are good, replace BTP 1 and do close out.
    2. If fault remains, continue with next step.

  2. Perform wiring checks between BMC 1 and L BPT.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  3. Perform wiring checks between BMC 1 and JB3.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.
      NOTE: Remove all interface components for short test.

  4. Swap BMC 1 with BMC 2.

    1. If system checks are good, replace BMC 1 and do close out.
    2. If fault remains, continue with next step.

  5. Replace JB3.
  6. Do close out.
