Message Overview:

Message Name:

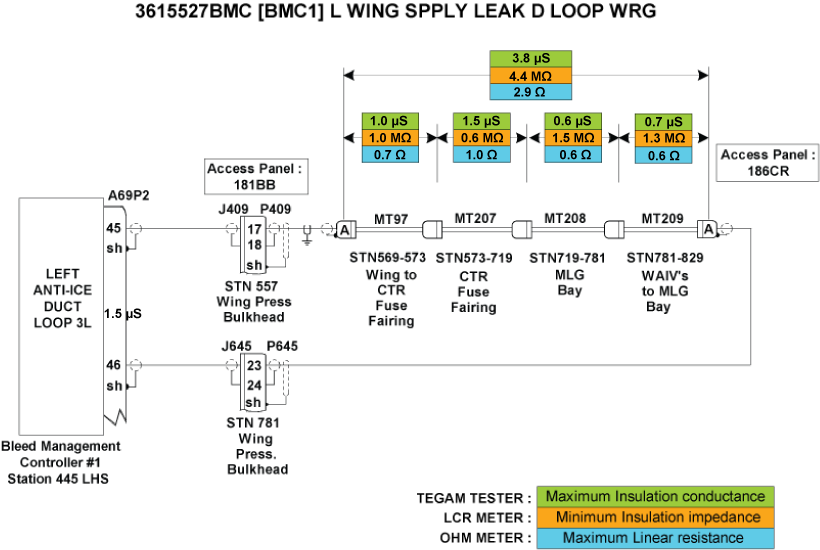

[BMC1] L WING SPPLY LEAK D LOOP/WRG

Message Code:

3615527BMC

Reporting LRU: Bleed Management Controller 1 (BMC)
Associated CAS: L WING A/ICE FAIL (Caution)
WING A/ICE FAULT (Advisory)
System Description: 36-12-00 - Bleed-Air Leak-Detection System
Schematic Diagram: [ G5000 ]  [ Global Express ]  [ Global XRS ] SSM 36-12-00-101 - Bleed Air Leak Detection System - Electrical Schematic
Wiring Diagram: [ G5000 ]  [ Global Express ]  [ Global XRS ] WM 36-12-00-1_003 - Sheet 3 - Center/AFT Fuselage - [9004-9024]
[ G5000 ]  [ Global Express ]  [ Global XRS ] WM 36-12-03-1_001 - Sheet 1 - Centre/Aft Fuselage - ALL

Message Description:

The Left Wing Supply (SPPLY) Loop circuit connected to Bleed Management Controller 1 (BMC) has been detected with an Open Center Conductor or short circuit between the Center Conductor and the Outer Sheath. Inhibited during Take-Off and Landing.

Possible Causes:

  • Bleed Air Leak Detection System
  • Left Wing Anti-Ice Loops
  • Bleed Management Controller 1 (BMC) (A69)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

  • AW700-36-0365 - Bleed management controller - Data Gathering to reduce No Fault Found (NFF) rate
  • 700T-0006 - Revision 1 - WING A/ICE FAULT (Advisory) EICAS Messages

Full Throttle Blog/Forum Articles/Infoservice/Newsletter:

Flight Operation Notifications Manual (FONM): None

NOTES:

  • Always verify you are working with the current document revision. Access the CIC website to ensure the latest document revision.

Quick Links:

Grounding of the Aircraft [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM10-11-00-867-801
Removal of the Covers and Plugs [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM10-12-00-020-801
Installation of the Covers and Plugs [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM10-12-00-420-801
Standard Aircraft Configuration for Maintenance [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM12-00-00-867-801
Aircraft Walkaround (for Maintenance) [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM12-00-00-867-802
Connect Electrical Power to the Aircraft [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM24-00-00-861-801
Remove the Electrical Power from the Aircraft [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM24-00-00-861-802
Electrical/Electronic Safety Precautions [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM24-00-00-910-801
Electrostatic Discharge Safety Precautions [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM24-00-00-910-802
Removal of the Bleed Management Controller [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM36-11-33-000-801
Installation of the Bleed Management Controller [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM36-11-33-400-801
Operational Test of the Bleed Management Controller [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM36-11-33-710-801
Bleed Leak-Detection-Loops and Components Maintenance Practices [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM36-12-00-910-801
Operational Test of the Bleed Leak-Detection-Loops [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM36-12-01-710-801
Access to Active Faults [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM45-45-00-970-802
Access to Stored Faults [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM45-45-00-970-803
Access to System Diagnostics [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM45-45-00-970-804
Flight Deck Effect to Fault Correlations [ G5000 ]  [ Global Express ]  [ Global XRS ] AMM45-45-00-970-821
Wire Repair - Maintenance Practices - ALL [ G5000 ]  [ Global Express ]  [ Global XRS ] SPM20-12-10-02

Troubleshooting Recommendations:

  1. Disconnect A69P2 from BMC 1.
  2. Measure Insulation resistance and line resistance of the detection loops as per the Leak Detection Elements troubleshooting sheet. Make sure line resistance and insulation values are within the specified limits.

    1. If the values are within specified limits, go to step 4.
    2. If values are not within the specified limits, continue with next step.

  3. Replace faulty elements.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  4. Make sure the Leak Detection Elements are installed as per Bleed Air Leak Detection System-Maintenance Practices.

    1. If system checks are good, do close out.
    2. If fault remains, continue with next step.

  5. Perform wiring checks of the remaining wires linking the Left A/ICE DUCT Loops circuit to BMC 1.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  6. Replace BMC 1.
  7. Do close out.
