Message Overview:

Fault Message:

RIGHT INBD WING AI TEMP SENSOR/WRG

Fault Code:

3616424BMC

Associated CAS:

R WING A/ICE FAIL
(Caution)

WING A/ICE FAULT
(Advisory)

Reporting LRU: Bleed Management Controller (BMC) 2
System Description: 30-12-00
Schematic Diagram: 30-11-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 30-11-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Message Description:

A difference greater than 10 °C has been detected between the two temperature sensing elements of the RIGHT INBD WING AI TEMP SENSOR. Inhibited during Take-off and Landing.

NOTE: On Bleed Management Controller (BMC) P/N GG546-1017-11 and older, the difference is 5 °C instead of 10 °C.

Possible Causes:

  • Right Inboard A/ICE Temperature Sensor (E41)
  • Bleed Management Controller (BMC) 2 (A70)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin:

Forum Articles/Infoservice/Newsletter:

  • Forum Article 2011-VOL 8 issue 23 - Bleed Management Controller (BMC) Top 10 No Fault Found (NFF) vs. Reliability Improvement Modification Program (RIMP) implementation
  • Questionnaire for replacing the BMC. Follow instructions using this (Fill out form)

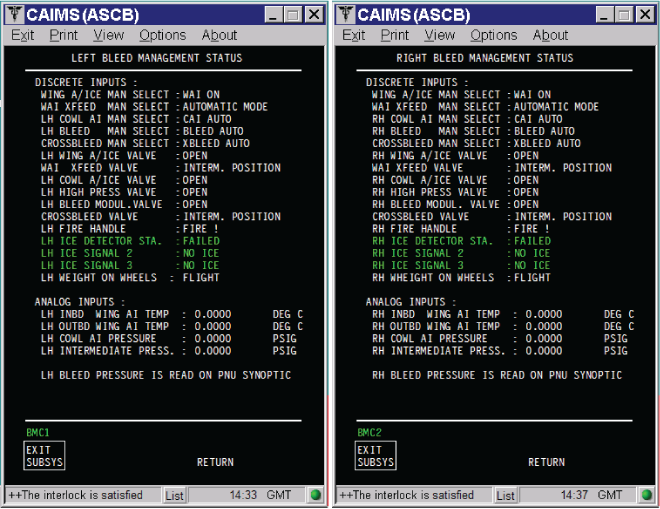

The Ice Detector Status can be obtained in CAIMS.

Quick Links:

Removal of the Anti-Icing Temperature Sensors AMM 30-11-05-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Anti-Icing Temperature Sensors AMM 30-11-05-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Bleed Management Controller AMM 36-11-33-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Bleed Management Controller AMM 36-11-33-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Swap INBD WING AI TEMP SENSOR with OUTBD WING AI TEMP SENSOR.

    1. If system checks are good, replace INBD WING AI TEMP SENSOR and do close out.
    2. If fault remains, continue with next step.

  2. Perform wiring checks between BMC 2 and RIGHT INBD WING AI TEMP SENSOR.

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  3. Replace BMC 2.
  4. Do close out.
