Message Overview:

Fault Message:

FADEC [SHUT OFF SOL DRVR SHORT CKT]

Fault Code:

4960167APU

Associated CAS:

APU FAULT
(Advisory)

Reporting LRU: Full-Authority Digital Engine-Controller (FADEC)
System Description: 49-60-00

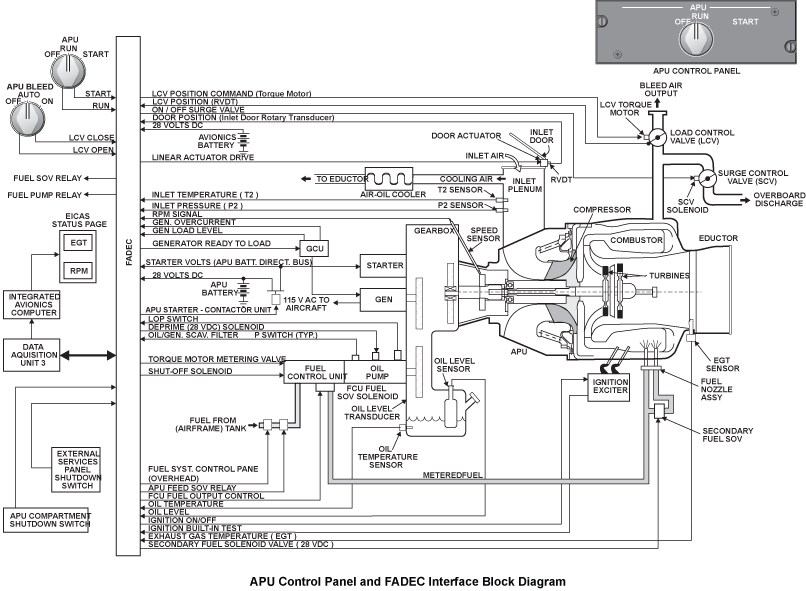

Schematic Diagram: 49-61-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 49-61-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

The Full-Authority Digital Engine-Controller (FADEC) has detected an internal failure to its overspeed protection circuitry.

Possible Causes:

  • Auxiliary Power Unit (APU) Full-Authority Digital Engine-Controller (FADEC) (A108)

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Access to Stored Faults AMM 45-45-00-970-803 [ Global Express ]  [ G5000 ]  [ Global XRS ]

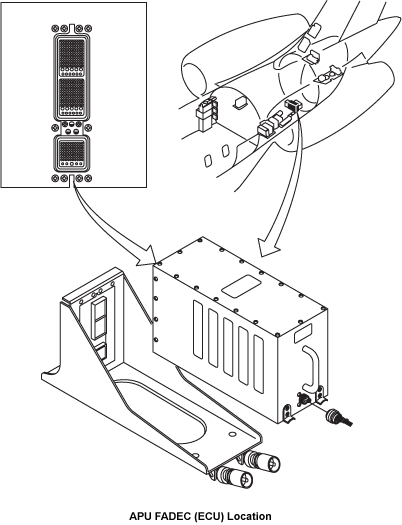

Removal of the Full-Authority Digital Engine-Controller (FADEC) AMM 49-61-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Full-Authority Digital Engine-Controller (FADEC) AMM 49-61-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

  1. Re-rack FADEC and verify both the tray and FADEC connectors for damage or FOD, verify if fault is still present.

    1. If YES, repair the damage as required and do close out.
    2. If NO, continue with next step.

  2. Replace the APU FADEC.
  3. Do close out.
