10/01/19

Message Overview:

Fault Message:

L TR THROTTLE WRG/INTERLOCK MA

Fault Code:

7327227LBR

Associated CAS:

None

Reporting LRU: Left Engine Electronic Controller (EEC)
System Description: 78-30-00
Schematic Diagram: 78-33-00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wiring Diagram: 76-10-01 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Fault Description:

Engine Electronic Controller (EEC) is unable to disengage the throttle interlock when reverse thrust is set.

Possible Causes:

  • Throttle Quadrant Assembly (TQA) (AP41)
  • Left Engine Electronic Controller (EEC)
  • Associated Wiring

Troubleshooting Tips:

Advisory Wire/Service Bulletin: None

Forum Articles/Infoservice/Newsletter: None

Quick Links:

Opening of the Cowls AMM 71-10-00-010-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Closing of the Cowls AMM 71-10-00-410-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Throttle Quadrant AMM 76-10-01-000-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Throttle Quadrant AMM 76-10-01-400-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Deactivation of the Thrust Reverser (for Maintenance) AMM 78-30-00-040-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Activation of the Thrust Reverser (for Maintenance) AMM 78-30-00-440-801 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Removal of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-000-801-B00 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Installation of the Eng Electronic Controller (EEC)
Mod 73-101559		 EMM 73-21-01-400-801-B001 [ Global Express ]  [ G5000 ]  [ Global XRS ]
Wire Repair - Maintenance Practices - ALL SPM 20-12-10-02 [ Global Express ]  [ G5000 ]  [ Global XRS ]

Troubleshooting Recommendations:

CAUTION: DO NOT DO ELECTRICAL CHECKS INTO THE ENGINE ELECTRONIC CONTROLLER (EEC). IF YOU DO NOT OBEY THIS INSTRUCTION, DAMAGE TO THE EEC CAN OCCUR.

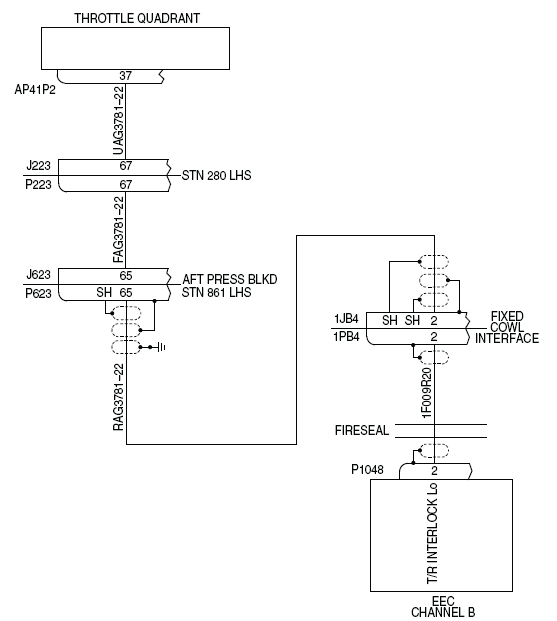

  1. Perform wiring checks between the TQA (AP41P2) and EEC (P1048).

    1. If wiring checks are not good, repair defective wiring as required and do close out.
    2. If wiring checks are good, continue with next step.

  2. Swap the Left EEC with Right EEC. Is the fault still present?

    1. If NO, replace Left EEC and do close out.
    2. If YES, continue with next step.

  3. Replace the Throttle Quadrant Assembly.
  4. Do close out.
